Product Overview: TPS22945DCKRG4 by Texas Instruments

The TPS22945DCKRG4 is a versatile and efficient load switch from Texas Instruments, designed to manage power distribution in electronic systems. This compact integrated circuit offers high performance in a small package, making it ideal for space-constrained applications that require precise power control.

Key Features

• Ultra-Low On-Resistance: The TPS22945DCKRG4 features an ultra-low on-resistance (RON) of typically 105 mΩ, which ensures minimal voltage drop and power loss when the switch is in the ON state, thereby improving overall system efficiency.
• Input Voltage Range: The device supports an input voltage range from 2.7V to 5.5V, accommodating a wide array of power sources and making it suitable for various applications including portable electronics.
• Low Quiescent Current: With a low quiescent current of typically 1 µA, the load switch minimizes power consumption when in standby mode, contributing to the extended battery life of portable devices.
• Controlled Slew Rate: The TPS22945DCKRG4 incorporates a controlled slew rate to reduce inrush current, minimizing the impact on the power source and surrounding circuitry when the load is enabled.
• Bidirectional Operation: This device is capable of bidirectional operation, allowing for flexibility in power routing and distribution within a system.

Applications

The TPS22945DCKRG4 is suitable for a variety of applications where power efficiency and space savings are crucial. These include:

• Smartphones and tablets
• Portable media players
• Wearable technology
• Power management modules
• IoT devices

Package and Reliability

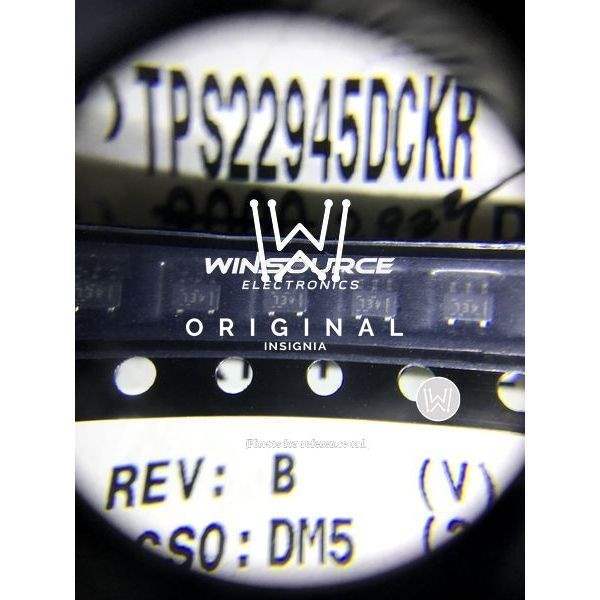

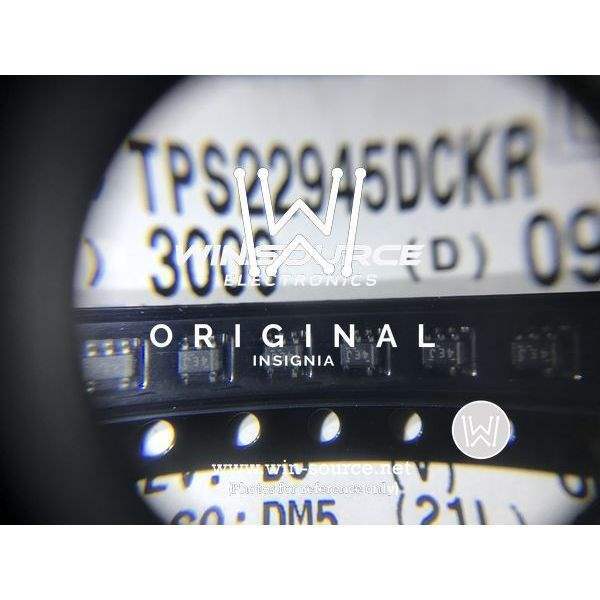

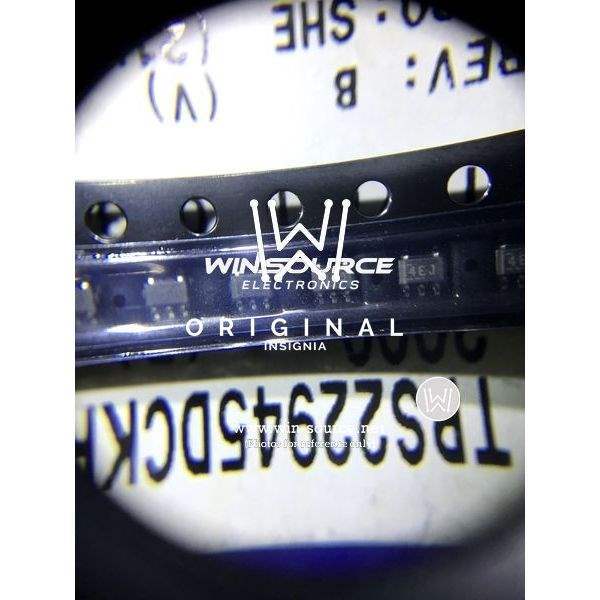

This load switch comes in a compact 6-pin SC-70 package, which is highly valued in portable and space-sensitive designs. The TPS22945DCKRG4 is characterized for operation over the free-air temperature range of -40°C to 85°C, ensuring reliable performance across diverse environmental conditions.

With its robust feature set and flexible application range, the TPS22945DCKRG4 from Texas Instruments stands out as a high-quality component for efficient power management in modern electronic designs.
