Product Overview: Texas Instruments TPS22925BYPHT

The Texas Instruments TPS22925BYPHT is a cutting-edge load switch designed to deliver high performance in power management applications. This compact, integrated circuit is engineered to provide a reliable and efficient means of controlling power distribution within electronic systems.

Key Features

• Ultra-Low On-Resistance: The TPS22925BYPHT boasts an ultra-low on-resistance (R<sub>ON) of just 28 mΩ at 4.5V, which minimizes power loss and improves efficiency.
• Input Voltage Range: This device operates over a broad input voltage range from 0.9V to 5.5V, making it versatile for various applications, including battery-powered devices.
• Maximum Continuous Current: It can handle a maximum continuous current of up to 2A, catering to the needs of high-performance circuits.
• Quick Output Discharge: The integrated quick output discharge (QOD) feature ensures a rapid power-off sequence, enhancing system safety and reliability.
• Controlled Slew Rate: The TPS22925BYPHT is designed with a controlled slew rate to reduce inrush current, which helps in maintaining system stability during power-up.

Applications

The versatility of the TPS22925BYPHT makes it suitable for a wide range of applications, including:

• Smartphones and Tablets
• Portable Media Players
• Wireless and Networking Devices
• Power Management in Embedded Systems

Package and Quality

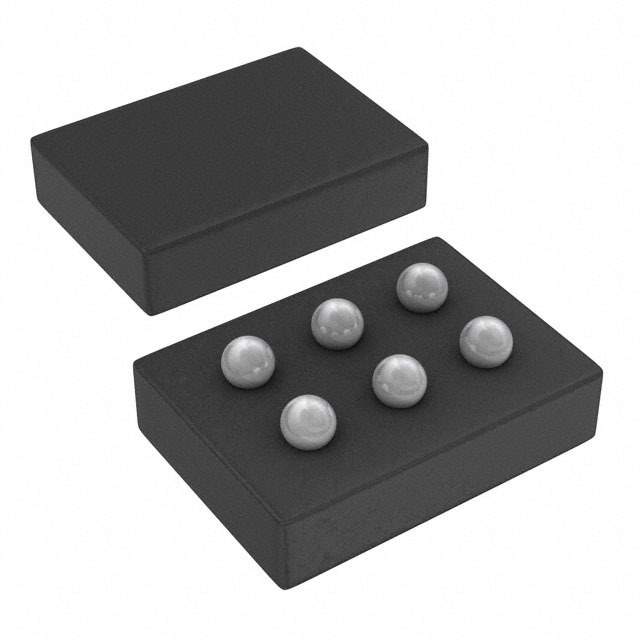

The device is available in a space-saving 6-pin, 1.6 mm x 1.6 mm, 0.5 mm pitch, DSBGA package, which is ideal for compact PCB layouts. Texas Instruments' commitment to quality ensures that the TPS22925BYPHT meets rigorous industry standards for performance and reliability.

Conclusion

With its robust feature set and versatile application range, the Texas Instruments TPS22925BYPHT load switch is an excellent choice for designers seeking to enhance power management efficiency in their electronic products. Its low on-resistance, high current capability, and quick discharge feature make it a valuable component in any power-sensitive design.
