Product Overview: Texas Instruments TPS2206ADBR

The Texas Instruments TPS2206ADBR is a high-performance, dual-slot PC Card power-interface switch designed to manage power distribution between the system and the card slots in portable computers and similar devices. This integrated circuit (IC) is part of TI's extensive power management portfolio and is specifically engineered to provide a reliable and efficient power solution for applications involving PC Cards, also known as PCMCIA cards.

Key Features and Benefits

• Dual-Slot Configuration: The TPS2206ADBR supports two independent slots, allowing for simultaneous operation of multiple PC Cards, which is ideal for multitasking and enhancing device functionality.
• Integrated Switching: It includes built-in 0.1-Ohm high-side MOSFET switches that offer low on-resistance, reducing power loss and improving overall efficiency.
• Short-Circuit Protection: The device features robust short-circuit protection for both VCC and VPP power supplies, safeguarding the system and cards from potential damage caused by overcurrent conditions.
• Thermal Shutdown: Thermal shutdown functionality is included to prevent overheating, ensuring the device operates within safe temperature ranges.
• Under-Voltage Lockout (UVLO): The TPS2206ADBR incorporates UVLO to ensure that the power switch operates correctly and safely by turning off when the input voltage drops below a certain threshold.
• Programmable Current Limit: Users can set the current limit according to their specific application requirements, providing additional control over power management.

Applications

The TPS2206ADBR is suitable for a wide range of applications that require efficient power management for PC Cards. These include:

• Notebook Computers
• Personal Digital Assistants (PDAs)
• Portable Instrumentation
• Test Equipment

Product Packaging and Quality

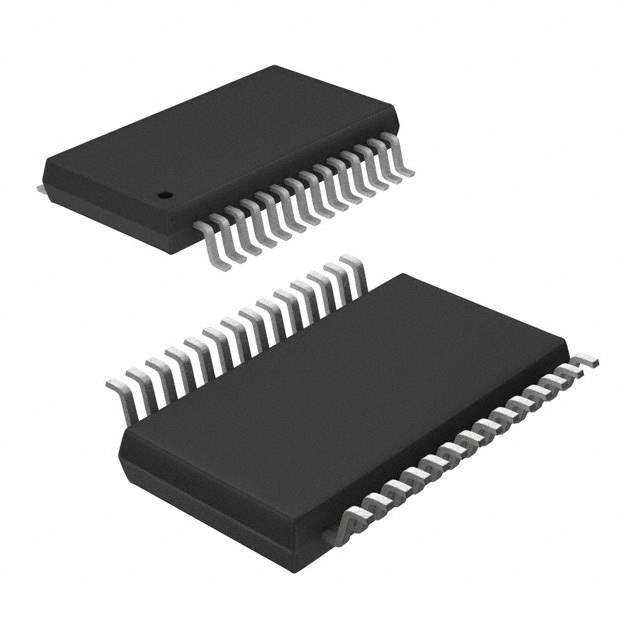

Encased in a 30-TSSOP (DBR) package, the TPS2206ADBR is designed for surface-mount technology (SMT), allowing for more compact and robust designs. Texas Instruments is known for its commitment to quality, and this product is no exception, meeting high standards for performance and reliability.

Overall, the TPS2206ADBR from Texas Instruments is an excellent choice for designers looking for a dual-slot power-interface switch that combines efficiency, protection features, and programmability in a compact package.
