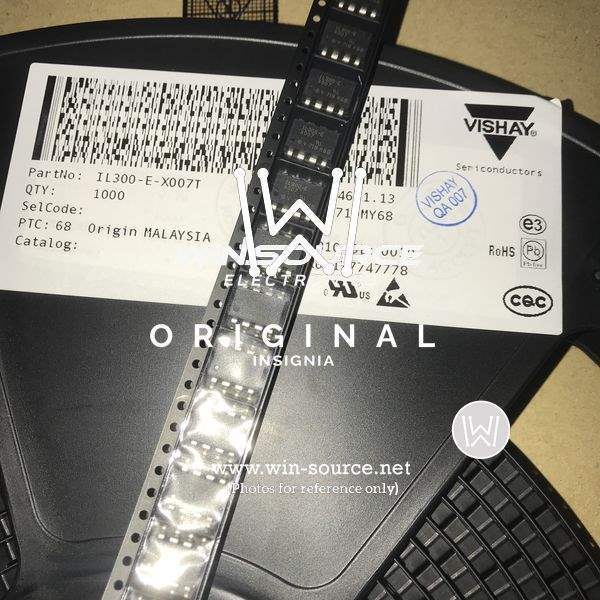

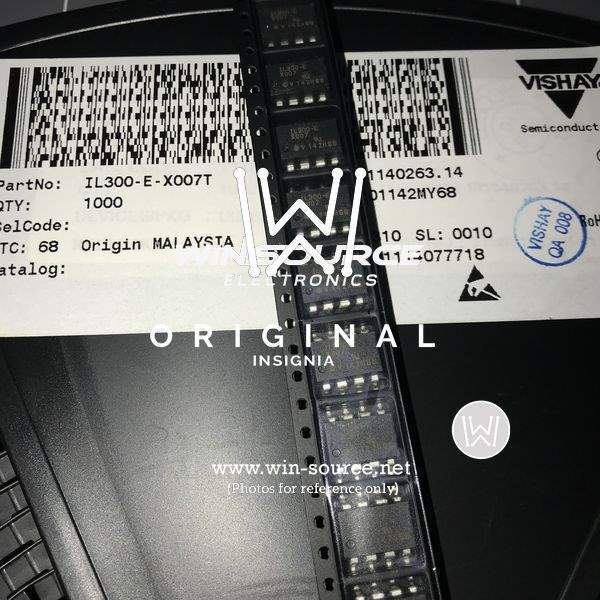

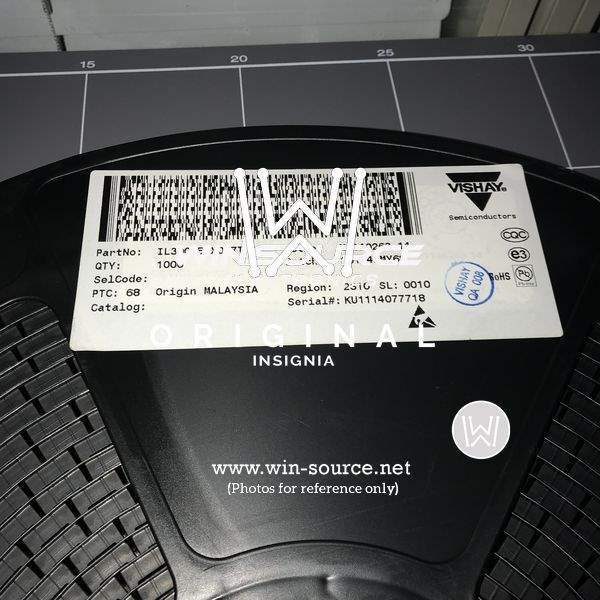

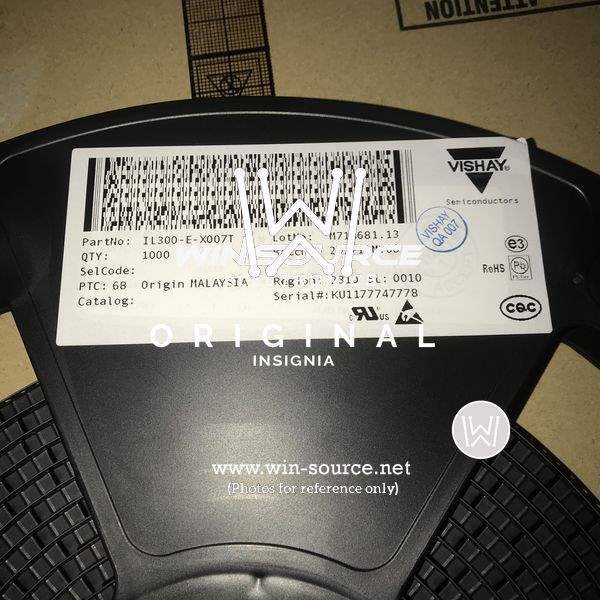

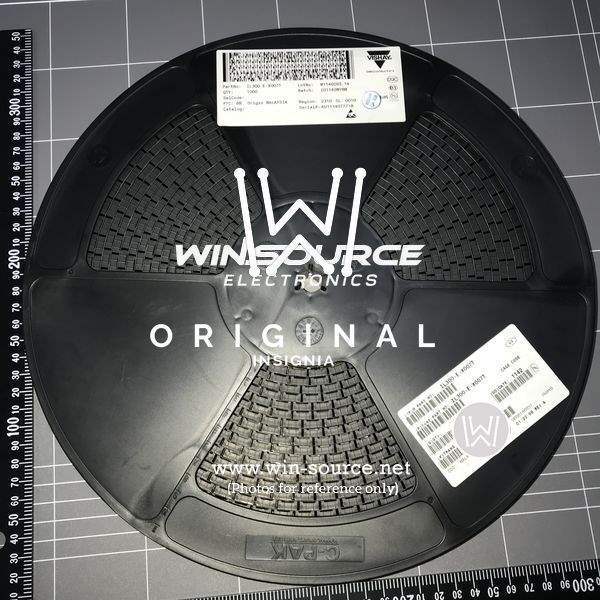

IL300-E-X007T Vishay IL300-E-X007T real image IL300-E-X007T real image 2 IL300-E-X007T real image 3 IL300-E-X007T label picture IL300-E-X007T label picture 2 IL300-E-X007T label picture 3
Same model may have multiple batches, images only for reference.
IL300-E-X007T Vishay IL300-E-X007T real image IL300-E-X007T real image 2 IL300-E-X007T real image 3 IL300-E-X007T label picture IL300-E-X007T label picture 2 IL300-E-X007T label picture 3
IL300-E-X007T Vishay IL300-E-X007T real image IL300-E-X007T real image 2 IL300-E-X007T real image 3 IL300-E-X007T label picture IL300-E-X007T label picture 2 IL300-E-X007T label picture 3
Same model may have multiple batches, images only for reference.

IL300-E-X007T

Part No IL300-E-X007T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV PHVOLT 8SMD / DC-IN 1-CH Linear Photovoltaic DC-OUT 8-Pin PDIP-8A SMD T/R
Datasheet
IL300-E-X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5300Vrms
Rise and Fall Time 1μs, 1μs
Input Type DC
Output Type Photovoltaic, Linearized
Maximum Output Voltage 500mV
Channel Output Current 70μA (Typ)
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 8-SMD
Win Source Part Number 205140-IL300-E-X007T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IL300
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian IL300-E-X007T CAD Model

Description

The Vishay IL300-E-X007T is a high-popularity optoisolator designed for SMD (SMT) mounting.

  • Popularity: High
  • Mounting: SMD (SMT)
  • Output Type: Linearized Photovoltaic
  • Isolation Voltage: 5300Vrms
  • Maximum Output Voltage: 500mV
  • Rise Time: 1μs
  • Fall Time: 1μs
  • Size: 8-SMD
  • Channels: One
  • Continuous Forward Current: 60mA
  • Operating Temperature: -55°C to 100°C
