The TPD5E003DPFR is a state-of-the-art circuit protection device designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This device is specifically engineered to safeguard sensitive electronic circuits from electrostatic discharge (ESD) and other voltage-induced transient events. The TPD5E003DPFR is an essential component for maintaining the integrity and reliability of modern electronic systems.

Key Features

• Low Clamping Voltage: The device offers a low dynamic resistance and clamping voltage, ensuring that the protected circuit is exposed to minimal stress during transient conditions.
• 5-Channel Protection: It provides ESD protection to up to five data or signal lines against ESD strikes, making it an ideal choice for multi-line applications.
• Wide Operating Voltage Range: The TPD5E003DPFR is designed to function over a broad range of operating voltages, accommodating various application requirements.
• High ESD Protection Level: The device is capable of withstanding ESD strikes of ±8 kV contact discharge and ±15 kV air-gap discharge, as per the IEC 61000-4-2 international standard.
• Ultra-Low Capacitance: With ultra-low line capacitance, this protection device is suitable for high-speed interfaces without significantly affecting signal integrity.

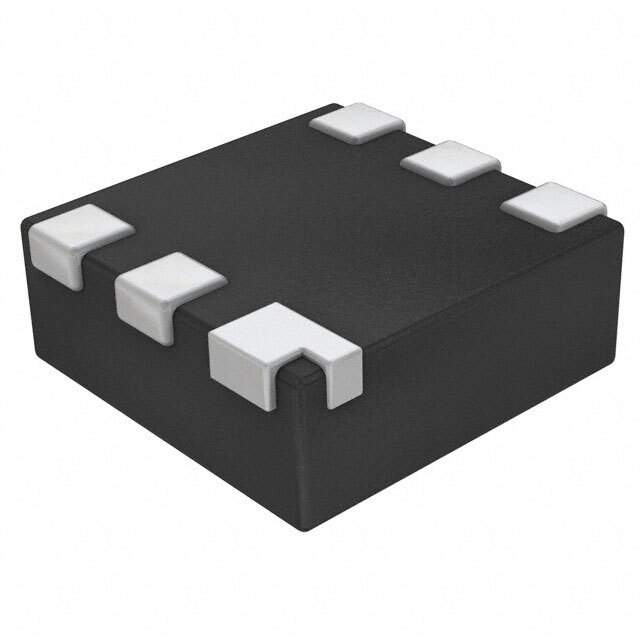

• Small Form Factor: The compact DFN-10 package allows for space-saving PCB design, which is critical in portable and space-constrained electronic devices.

Applications

The TPD5E003DPFR is versatile in its applications, suitable for a variety of electronic products that require robust protection against transient voltage spikes. Common applications include:

• Smartphones and portable electronics
• USB interfaces and HDMI ports
• High-speed data lines and video interfaces
• Notebooks, desktops, and servers
• Consumer electronics

With its combination of features, the TPD5E003DPFR from Texas Instruments is an excellent choice for designers looking to enhance the durability and longevity of their electronic products against the rigors of daily use and the threat of electrostatic damage.
