Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Texas Instruments
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3V
Voltage - Breakdown (Min) 6.1V
Power - Peak Pulse 35W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount

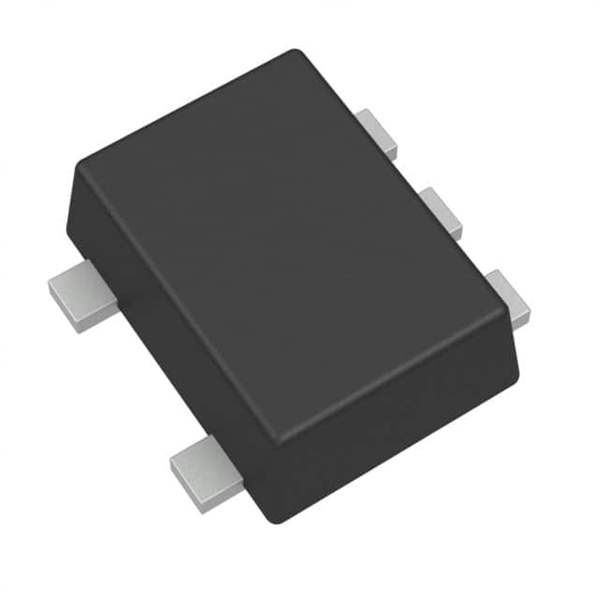

Package / Case SOT-553
Supplier Device Package SOT-5
Base Product Number TPD4E002
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 851579-TPD4E002DRL2
Ultra Librarian 3D Model Ultra Librarian TPD4E002DRL2 CAD Model

Description

TPD4E002DRL2 - Texas Instruments 4-Channel ESD Protection Device

The TPD4E002DRL2 is a versatile and robust electrostatic discharge (ESD) protection component designed by Texas Instruments. This device is engineered to safeguard high-speed data lines and other sensitive circuits from the damaging effects of ESD and other transient voltage events. With its compact form factor and high level of protection, the TPD4E002DRL2 is an ideal choice for a wide range of applications, including USB interfaces, video lines, and other high-speed data ports.

Featuring a quartet of ESD clamps, the TPD4E002DRL2 provides protection for up to four data or transmission lines. Each channel can withstand ESD strikes exceeding the IEC 61000-4-2 (Level 4) standard, ensuring devices remain safe from the most common electrostatic threats. The low clamping voltage and fast response time of the TPD4E002DRL2 minimize the risk of damage to downstream components, preserving the integrity and reliability of the entire system.

The TPD4E002DRL2 comes in a tiny SOT-6 package, which is highly advantageous for space-constrained applications. The small footprint allows for easy integration into existing designs without the need for significant layout changes. Despite its diminutive size, the device does not compromise on performance, offering low capacitance and minimal insertion loss, which is crucial for maintaining signal integrity in high-speed applications.

Moreover, the TPD4E002DRL2 is characterized by its low leakage current, which helps to conserve power in portable and battery-operated devices. This feature, combined with its ability to operate over a wide temperature range, makes the TPD4E002DRL2 an excellent choice for both consumer and industrial electronics.

In summary, the TPD4E002DRL2 from Texas Instruments represents a powerful solution for ESD protection in modern electronic designs. Its ability to defend multiple lines, coupled with its low power consumption and high-performance characteristics, ensures that it is well-suited to protect the next generation of high-speed interfaces and sensitive digital circuits.
