TPD2EUSB30DRT by Texas Instruments

The TPD2EUSB30DRT is a state-of-the-art integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This compact and efficient device is specifically engineered to provide robust electrostatic discharge (ESD) protection for high-speed data lines. It is an ideal choice for safeguarding sensitive USB 3.0 interfaces against the damaging effects of ESD and other transient voltage events.

With its dual-channel design, the TPD2EUSB30DRT can protect both the differential data lines (D+ and D-) required by USB 3.0 standards. Its low capacitance ensures that the high-speed signal integrity of USB 3.0 data lines is maintained, providing reliable protection without compromising performance. This feature is particularly important for applications that require fast data transfer rates, such as external hard drives, multimedia interfaces, and various other USB peripherals.

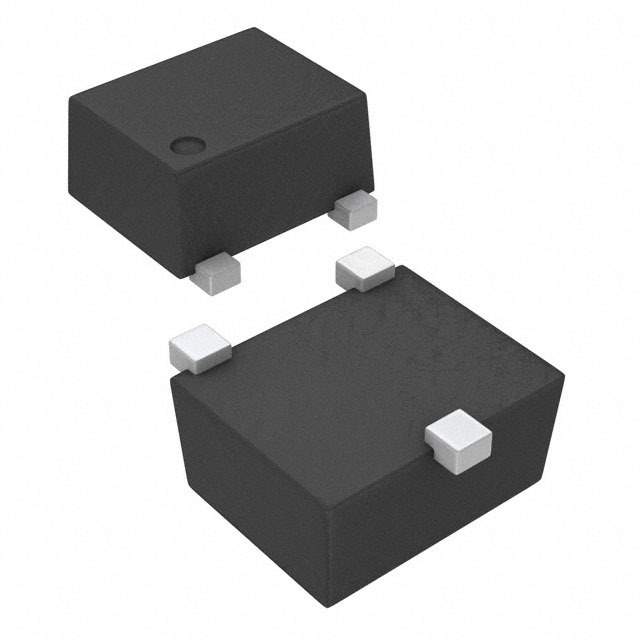

The device comes in a compact SOT-5X3 package, which is highly suitable for space-constrained applications. The TPD2EUSB30DRT has a low clamping voltage and can withstand ESD strikes of ±8 kV (Contact) and ±15 kV (Air-Gap) as per the IEC 61000-4-2 international standard. This level of protection ensures that the connected USB devices are shielded from the most common forms of electrical overstress.

Furthermore, the TPD2EUSB30DRT is characterized by its low leakage current and low dynamic resistance, which contribute to its overall efficiency and minimal impact on the system's power consumption. This makes it an energy-efficient solution for portable and battery-powered devices.

Designers and engineers will appreciate the ease of integration offered by the TPD2EUSB30DRT, as it simplifies the design of ESD protection circuits in USB 3.0 applications. Its compatibility with industry-standard requirements and reliability under harsh conditions make it a top choice for protecting advanced electronic systems.

In summary, the TPD2EUSB30DRT from Texas Instruments is a robust, high-performance ESD protection device, ensuring the safety and longevity of USB 3.0 interfaces in a wide range of electronic products.
