Introducing the Texas Instruments TPD2EUSB30ADRTR

The Texas Instruments TPD2EUSB30ADRTR is a cutting-edge solution for USB port protection, designed to safeguard your electronics from the risks of electrostatic discharge (ESD) and other voltage-induced threats. This compact and highly effective device is an essential component for any system that requires reliable protection for sensitive USB interfaces.

Robust Protection for Your USB Ports

The TPD2EUSB30ADRTR offers a robust two-channel ESD protection solution, specifically tailored for USB 3.0 interfaces. With its ability to dissipate ESD strikes in accordance with the IEC 61000-4-2 (Level 4) standard, this device ensures that your USB ports are shielded against the most severe electrostatic events. Its low capacitance design, featuring just 0.8 pF (typical), guarantees that signal integrity is maintained, delivering high-speed performance without compromising on protection.

Seamless Integration and High Performance

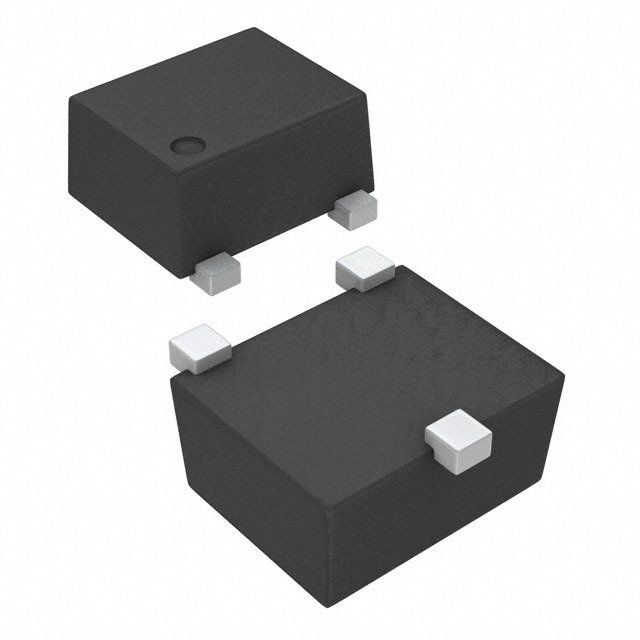

Designed with integration in mind, the TPD2EUSB30ADRTR comes in a diminutive DRT package, making it ideal for space-constrained applications. Its small footprint ensures that it can be easily incorporated into existing designs, providing an added layer of protection without the need for significant re-engineering. Despite its size, this device does not fall short in performance, supporting data rates up to 5 Gbps, which is essential for USB 3.0 data lines.

Advanced Features for Enhanced Safety

Featuring a low clamping voltage and fast response time, the TPD2EUSB30ADRTR reacts swiftly to transient voltage spikes, ensuring that connected components are not exposed to damaging voltages. This translates to improved longevity and reliability of your USB-enabled devices. Furthermore, the device is characterized for operation over the free-air temperature range of -40°C to 85°C, ensuring stability and protection across various environments.

Applications and Usability

The versatility of the TPD2EUSB30ADRTR makes it suitable for a wide array of applications, including laptops, desktops, USB hubs, and docking stations. Its ease of use and straightforward implementation allow designers and engineers to incorporate this protective component with minimal hassle, providing peace of mind and enhanced safety for end-users.

Whether you are developing consumer electronics, industrial interfaces, or portable devices, the Texas Instruments TPD2EUSB30ADRTR stands as a reliable and essential component that ensures your USB ports remain protected against the unforeseen dangers of electrostatic discharge and other voltage-related threats.
