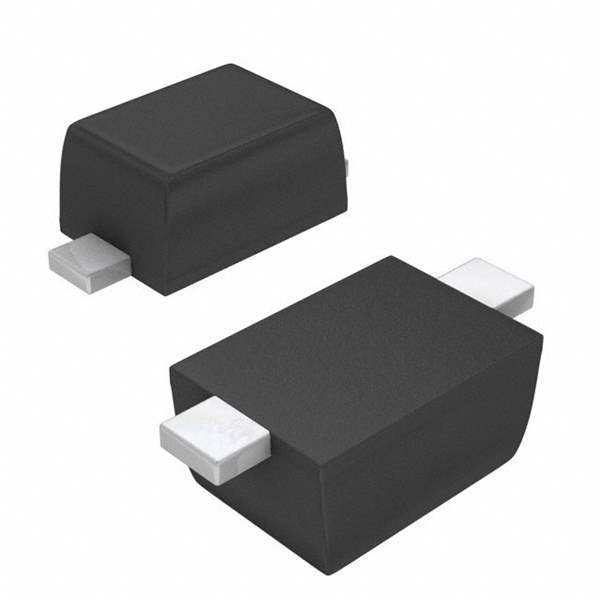

TPD1E10B06DYARQ1 Texas Instruments – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TPD1E10B06DYARQ1

Part No TPD1E10B06DYARQ1
Manufacturer Texas Instruments
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 14VC SOT5X3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Texas Instruments
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 14V (Typ)
Current - Peak Pulse (10/1000μs) 6A (8/20μs)
Power - Peak Pulse 90W
Power Line Protection No
Capacitance @ Frequency 12pF @ 1MHz
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOT-5X3
Base Product Number TPD1E10B06
Ultra Librarian 3D Model Ultra Librarian TPD1E10B06DYARQ1 CAD Model
