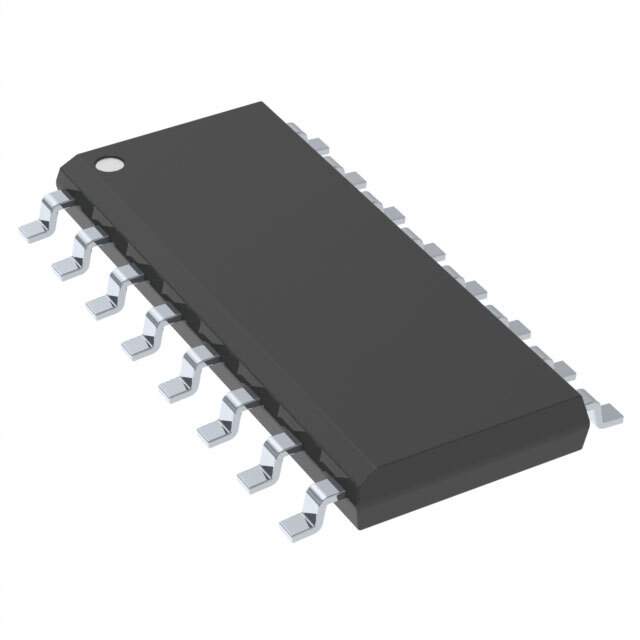

The TMUX1309QDYYRQ1 from Texas Instruments is a state-of-the-art precision analog multiplexer that offers exceptional performance for a wide range of applications. This advanced switch is designed to seamlessly route multiple analog or digital signals through a single device, making it an ideal choice for complex systems requiring high signal integrity.

Key Features

• Low On-Resistance: The device features a low on-resistance of typically 3 ohms, which minimizes signal distortion and ensures high-quality signal transmission.
• Wide Supply Range: It operates across a wide supply range of 1.08V to 5.5V, accommodating various levels of signal voltages and making it suitable for multi-voltage systems.
• High ESD Protection: The TMUX1309QDYYRQ1 is equipped with robust Electrostatic Discharge (ESD) protection, safeguarding the device against static damage and enhancing system reliability.
• Break-Before-Make Switching: This feature prevents signal overlap during channel switching, eliminating the possibility of shorting and providing clean, glitch-free signal transitions.
• Extended Temperature Range: With an operational temperature range of -40°C to +125°C, this multiplexer is well-suited for use in harsh environmental conditions.

Applications

The versatility of the TMUX1309QDYYRQ1 makes it a perfect fit for a broad spectrum of applications, including:

• Data Acquisition Systems
• Test Equipment
• Automotive Infotainment and Telematics
• Industrial Process Control
• Medical Equipment

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the TMUX1309QDYYRQ1 is no exception. It is designed and manufactured to meet the stringent requirements of the automotive industry, signified by the "Q1" in its product name, indicating its status as a Qualified Automotive Product.

For designers and engineers looking for a reliable and high-performing analog multiplexer, the TMUX1309QDYYRQ1 from Texas Instruments offers the perfect blend of performance, durability, and versatility.
