Introducing the TMS5702134DZWTQQ1 Microcontroller from Texas Instruments

The TMS5702134DZWTQQ1 is a robust, high-performance microcontroller designed by Texas Instruments specifically for automotive and industrial applications. This powerful microcontroller is part of the Hercules TMS570 series, which is renowned for its safety features and reliability in critical systems. With a focus on providing advanced diagnostics and functional safety, the TMS5702134DZWTQQ1 is an ideal choice for developers looking to create systems requiring a high level of safety integrity.

At the heart of the TMS5702134DZWTQQ1 is an ARM Cortex-R4F CPU that operates at a frequency of up to 180 MHz. This processor core is capable of delivering the computational power needed for complex algorithms and control systems. The microcontroller is equipped with 1.25MB of integrated flash memory and 192KB of data RAM, ensuring ample space for application code and data storage.

One of the standout features of the TMS5702134DZWTQQ1 is its extensive set of peripherals. These include multiple CAN (Controller Area Network) interfaces, which are essential for automotive communication networks, as well as UART, SPI, and I2C modules for versatile connectivity options. Additionally, the device boasts a 12-bit ADC (Analog-to-Digital Converter) for precise measurement of analog signals, making it suitable for sensor-based applications.

Ensuring safety, the TMS5702134DZWTQQ1 comes with built-in safety features such as ECC (Error Correction Code) on both flash and RAM, a built-in self-test for CPU and memory, and a safety MCU supervisory module. These features contribute to the device's compliance with safety standards such as ISO 26262, making it a reliable choice for safety-critical automotive systems like electronic power steering, ABS, and airbag control units.

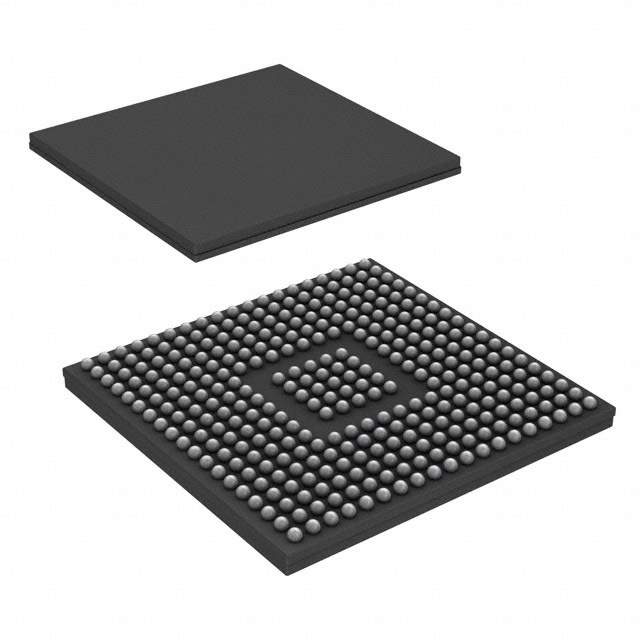

Designed with longevity and durability in mind, the TMS5702134DZWTQQ1 operates over an extended temperature range and is available in a 144-pin NFBGA (Non-leaded Fine-pitch Ball Grid Array) package. This ensures that the microcontroller can withstand the harsh conditions typically found in automotive and industrial environments.

In summary, the TMS5702134DZWTQQ1 from Texas Instruments is a sophisticated microcontroller that offers a blend of performance, safety features, and connectivity, making it an excellent choice for developers in the automotive and industrial sectors.
