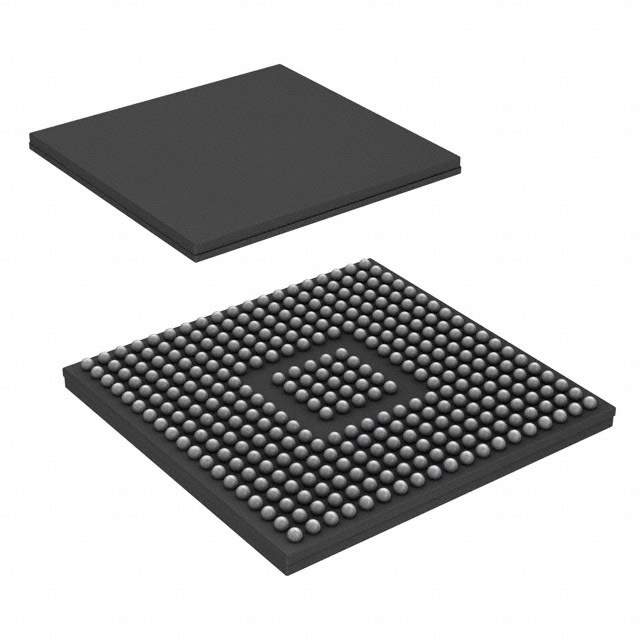

Overview of TMS5701115CZWTQQ1

The TMS5701115CZWTQQ1 is a robust automotive-grade microcontroller from Texas Instruments, designed to meet the high-reliability requirements of automotive and industrial applications. This microcontroller is part of the Hercules TMS570 series, which is renowned for its safety features and performance in safety-critical systems.

Key Features

• Performance: The TMS5701115CZWTQQ1 is equipped with a high-performance ARM Cortex-R5F CPU core that can run at speeds up to 330 MHz, offering the computational power needed for complex algorithms and control tasks.
• Memory: It comes with an ample memory configuration, including up to 4MB of integrated Flash memory and 256KB of RAM, ensuring sufficient space for application code and data storage.
• Safety: This microcontroller is designed with a range of safety features to comply with the ISO 26262 standard, making it suitable for safety-critical automotive applications like advanced driver-assistance systems (ADAS), braking, and power steering.
• Communication Interfaces: It includes multiple communication interfaces such as CAN, FlexRay, and Ethernet, providing versatile connectivity options for various automotive networks.
• Integrated Peripherals: The device offers a rich set of integrated peripherals like timers, ADCs, and PWM outputs, which are essential for real-time control tasks.

Applications

The TMS5701115CZWTQQ1 is ideal for a wide range of applications in the automotive sector, including:

• Electronic Brake Systems (EBS)
• Electric Power Steering (EPS)
• Active Suspension Control
• Engine Control Units (ECU)
• Transmission Control Modules (TCM)

Quality and Reliability

As an automotive-grade product, the TMS5701115CZWTQQ1 meets stringent quality standards. It is AEC-Q100 qualified, ensuring reliable operation under extreme conditions. The device is also supported by Texas Instruments' comprehensive development ecosystem, which includes software, development tools, and reference designs to accelerate system design and time-to-market.

In summary, the TMS5701115CZWTQQ1 microcontroller by Texas Instruments is a powerful and reliable solution for developers looking to create advanced, safety-oriented automotive systems. Its combination of performance, memory, safety features, and connectivity options make it a versatile choice for a multitude of automotive applications.
