Product Overview: TMS32C6414EGLZ6E3

The TMS32C6414EGLZ6E3 is a high-performance digital signal processor (DSP) from Texas Instruments (TI), renowned for its exceptional speed and efficiency in handling complex digital signal processing tasks. This product is part of TI's TMS320C64x family of DSPs, which are widely used in a variety of applications, including telecommunications, imaging, audio processing, and industrial control systems.

Key Features

• High-Performance Processing: With a core clock speed of up to 1 GHz, the TMS32C6414EGLZ6E3 is capable of executing up to 8000 million instructions per second (MIPS), making it suitable for high-speed signal processing applications.
• Large On-Chip Memory: The device includes integrated memory, featuring 1MB of Level 2 (L2) cache, which can be configured as mapped RAM or cache to enhance performance and flexibility.
• Advanced Bus Architecture: The DSP benefits from a high-bandwidth crossbar switch fabric, enabling concurrent multi-bus access, which minimizes bottlenecks and maximizes throughput.
• Robust Peripherals: A variety of peripherals are integrated, including Ethernet MAC, high-speed serial ports, and host-port interfaces, supporting a wide range of communication protocols.

Applications

The TMS32C6414EGLZ6E3 is designed to meet the demands of complex digital signal processing tasks. It is commonly used in:

• Telecommunications infrastructure such as base stations and network switches.
• Professional audio equipment, including mixers and audio processors.
• Medical imaging systems like MRI and ultrasound.
• Industrial control systems for automation and process control.

Technical Specifications

• Core: TMS320C64x
• Frequency: Up to 1 GHz
• Performance: Up to 8000 MIPS
• L2 Cache/Mapped RAM: 1MB
• Operating Temperature Range: -40°C to 105°C

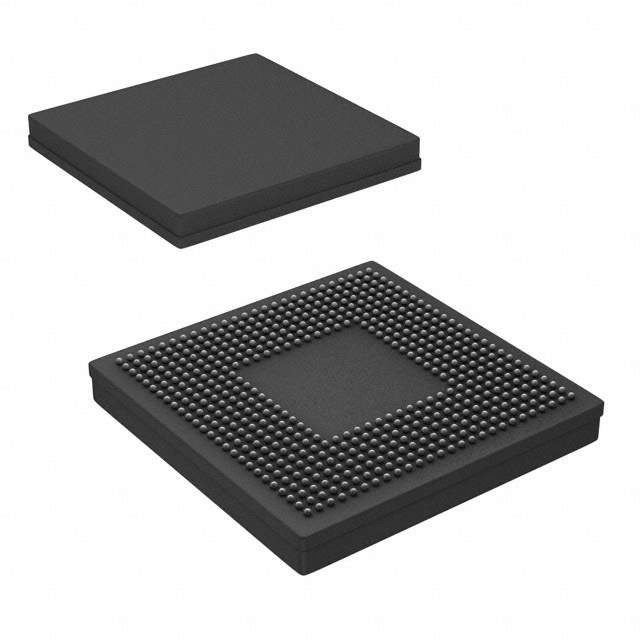

• Package: 532-BFBGA

Overall, the TMS32C6414EGLZ6E3 by Texas Instruments is a robust and versatile DSP that offers a blend of high-speed processing capabilities, extensive memory integration, and a comprehensive set of peripherals, making it an ideal choice for developers and engineers seeking a powerful solution for their high-performance digital signal processing needs.
