Texas Instruments TMS320VC5409GGU-80 DSP

The Texas Instruments TMS320VC5409GGU-80 is a high-performance digital signal processor (DSP) from the TMS320C54x DSP family. This device is designed to meet the rigorous processing demands of modern digital signal processing applications such as telecommunications, audio processing, industrial control, and instrumentation.

At the heart of the TMS320VC5409GGU-80 is a powerful fixed-point DSP core capable of executing up to 80 million instructions per second (MIPS) at a clock frequency of 80MHz. This performance level is achieved through an advanced architecture that includes a variety of features tailored to optimize signal processing tasks.

Key Features:

• High-Performance DSP Core: The core is capable of performing a wide range of signal processing operations at high speeds, making it ideal for real-time applications.
• On-Chip Memory: It includes integrated on-chip memory, consisting of 16KB of RAM and 16KB of ROM, allowing for efficient data storage and retrieval without the need for external memory components in many applications.
• Flexible Peripheral Options: The device features a rich set of peripherals, including a host port interface, serial ports, and a direct memory access (DMA) controller, which facilitate easy integration into a variety of system configurations.
• Low Power Consumption: Designed with power efficiency in mind, the TMS320VC5409GGU-80 is suitable for battery-operated devices, thanks to its power-saving features and low operational voltage.

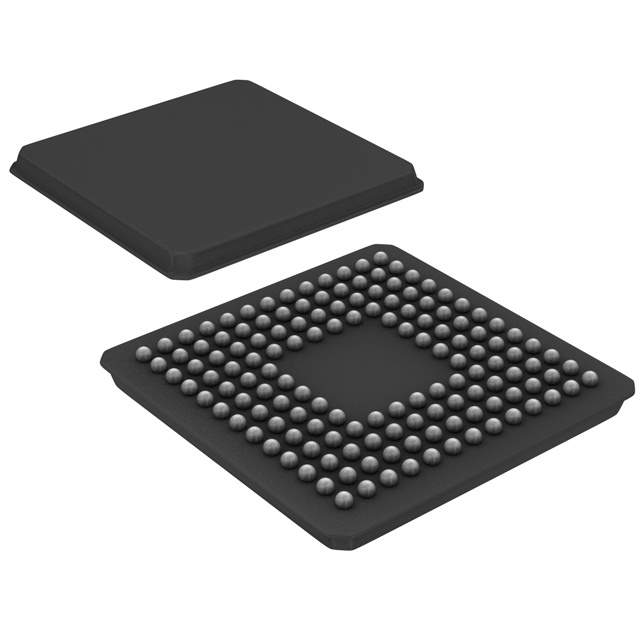

• Package and Temperature Range: This DSP comes in a 144-BGA (Ball Grid Array) package and is specified for a commercial temperature range, making it robust for a wide range of environments.
• Development Tools: Texas Instruments provides a comprehensive suite of development tools, including software development kits (SDKs), emulators, and debuggers, to facilitate rapid product development and debugging.

The TMS320VC5409GGU-80 is an excellent choice for designers looking for a DSP that offers a balance between high performance and low power consumption. Whether it's for voice and audio processing, medical imaging, or automotive applications, this DSP provides a scalable solution that can help accelerate time-to-market and enhance overall system capabilities.

With Texas Instruments' long-standing reputation for quality and support, the TMS320VC5409GGU-80 is a reliable component for any signal processing application.
