The TMS320F28232PTPS, from Texas Instruments, is a powerful digital signal processor (DSP) that is part of the C2000™ Piccolo™ family, renowned for their high-performance processing capabilities and real-time control functionalities. This DSP is particularly designed for demanding applications that require precise motor control, digital power conversion, and advanced industrial automation.

At the heart of the TMS320F28232PTPS is a 32-bit CPU, known as the C28x, which operates at a frequency of up to 150 MHz. This processor is capable of executing high-speed control algorithms with its specialized instruction set optimized for mathematical operations and real-time data processing. The device also features 256KB of flash memory and 18KB of RAM, which provides ample space for complex programs and data storage.

One of the standout features of this DSP is its integrated control peripherals. These include PWM outputs, capture inputs, QEP circuitry for handling quadrature encoded signals, and a 12-bit analog-to-digital converter (ADC) with a conversion rate of up to 3.75 MSPS. These peripherals enable the TMS320F28232PTPS to interface directly with sensors, actuators, and other electronic components, thus reducing system complexity and improving response times.

To facilitate communication with other devices, the TMS320F28232PTPS comes equipped with multiple communication interfaces, including CAN, I2C, SPI, and UART. This ensures that the DSP can easily be integrated into a broader system or network, allowing for data exchange and system monitoring.

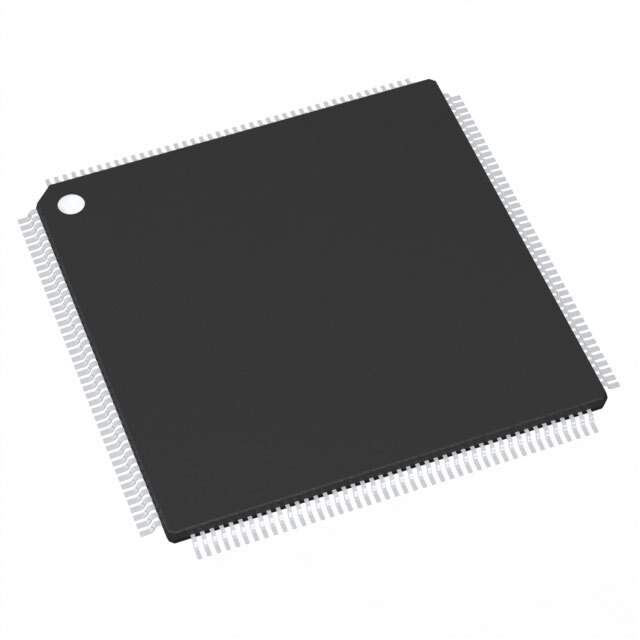

The TMS320F28232PTPS is available in a 176-pin LQFP (Low Profile Quad Flat Package), which is suitable for surface mount technology and offers a compact footprint for space-constrained applications. Texas Instruments also provides extensive support for this product, including development tools, software libraries, and reference designs, to accelerate the development process and reduce time-to-market.

In summary, the TMS320F28232PTPS is a versatile and reliable DSP that delivers exceptional performance for a wide range of industrial and control applications. Its integration of powerful processing capabilities, memory, and peripherals in a single package makes it an ideal choice for engineers looking to develop advanced control systems.
