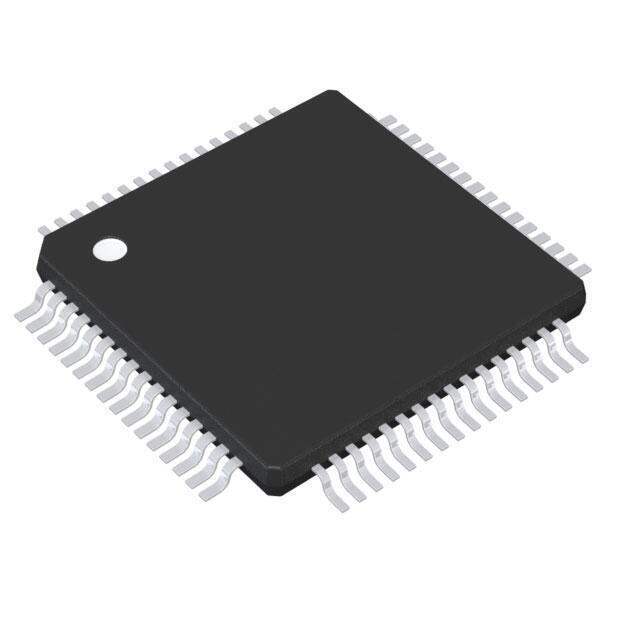

The TM4C1231E6PMIR is a high-performance ARM Cortex-M4F based microcontroller from Texas Instruments, tailored for a wide range of applications. It is part of the Tiva™ C Series, which is renowned for its robust capabilities in control, connectivity, and computing. This microcontroller is an ideal choice for industrial control, automotive, and consumer electronics due to its rich set of features and high level of integration.

Key Features

• Core: The TM4C1231E6PMIR is powered by a 32-bit ARM Cortex-M4F core, which operates at up to 80 MHz. The core includes a floating-point unit (FPU) that supports single-precision float point instructions for efficient data processing.
• Memory: This microcontroller comes with 32KB of flash memory and 6KB of SRAM, providing ample space for application code and data storage.
• Communication Interfaces: A variety of communication peripherals are integrated, including I2C, SPI, UARTs, and USB 2.0 Full Speed, facilitating easy connectivity with other devices and systems.
• Timers and PWM: It features multiple general-purpose timers, six 32-bit and two 64-bit timers, as well as PWM outputs for precise control over motors and other peripherals.
• Analog Integration: The device includes a 12-bit ADC with up to 8 channels, providing accurate analog-to-digital conversions.
• GPIO: Extensive GPIOs are available with programmable control for interfacing with external hardware.
• Power Management: Advanced power management features are incorporated to reduce power consumption during idle and active states.
• Robust Security: Security features such as hardware encryption and a random number generator ensure secure data communication and storage.

Applications

The TM4C1231E6PMIR microcontroller is versatile and can be used in a variety of applications, including:

• Industrial automation and control systems
• Automotive electronics and engine management
• Home automation and smart appliances
• Consumer electronics
• Internet of Things (IoT) devices

With its advanced features and performance capabilities, the TM4C1231E6PMIR by Texas Instruments is a reliable and efficient solution for sophisticated embedded systems.
