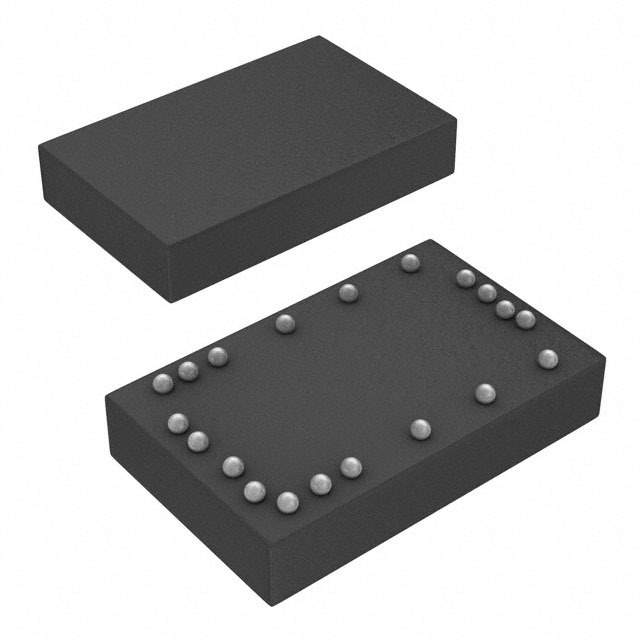

Introducing the Texas Instruments TLV5610IYE

The TLV5610IYE from Texas Instruments is a high-performance, octal 12-bit digital-to-analog converter (DAC) designed to meet the rigorous demands of industrial and communication applications. This precision DAC features a flexible 8-channel configuration, allowing for versatile use in systems that require multiple analog outputs with high accuracy and low power consumption.

At the heart of the TLV5610IYE is its innovative architecture, which ensures excellent stability and a fast settling time. The device operates with a 2.7V to 5.5V power supply, making it suitable for a wide range of applications from battery-powered devices to more traditional powered equipment. The low power consumption of the TLV5610IYE is particularly beneficial for portable and remote applications, where power efficiency is paramount.

Each of the eight DAC channels can be individually programmed via a 3-wire serial interface, which is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration into existing systems. The interface also supports daisy-chaining of multiple devices, which simplifies the design of systems requiring more than eight DAC channels.

The TLV5610IYE offers a flexible reference voltage input, which can be set by the user to accommodate a variety of output ranges. This feature provides the adaptability needed for custom voltage levels in specific applications. Additionally, the device boasts a double-buffered interface, which allows for simultaneous update of all DACs or individual updates, providing precise control over the analog outputs.

Reliability is a key aspect of the TLV5610IYE, and it is reflected in its robust design, which includes a power-on reset function that initializes the DAC outputs to a mid-scale or zero-scale, depending on user configuration. This ensures a predictable startup behavior and prevents unwanted transients during power-up.

Designed in a compact, surface-mount LQFP-38 package, the TLV5610IYE is ideal for space-constrained applications. Whether it's for process control, automated test equipment, or digital signal processing, the TLV5610IYE from Texas Instruments is a versatile solution that delivers precision and performance in a small footprint.

For more information and to view detailed specifications, visit the Texas Instruments website or consult the TLV5610IYE datasheet.
