Overview of Texas Instruments TLV2460CDBVR

The Texas Instruments TLV2460CDBVR is a high-performance, low-power operational amplifier that is part of the TLV246x family of rail-to-rail input/output operational amplifiers. These devices are designed to operate with a single or dual power supply, making them incredibly versatile for a wide range of applications. The TLV2460CDBVR is particularly well-suited for battery-powered applications due to its low power consumption.

Key Features

• Rail-to-Rail Input/Output: The TLV2460CDBVR provides an increased dynamic range, which is especially beneficial in single-supply operations.
• Low Power Consumption: With a quiescent current of just 500 µA/channel, this op-amp is an excellent choice for power-sensitive applications.
• High Output Drive: Capable of delivering a high output current, this op-amp can drive loads directly without the need for additional power buffers.
• Wide Supply Range: It operates on a supply range of 2.7V to 6V, accommodating a variety of supply voltages.
• High Slew Rate: A slew rate of 1.6 V/µs allows for fast signal response, making it suitable for high-speed signal conditioning.

Applications

The TLV2460CDBVR is an ideal choice for a multitude of applications, including:

• Portable and battery-operated electronics
• Audio processing
• Sensor signal conditioning
• Active filters and ADC buffer amplifiers
• Medical instrumentation

Package and Quality

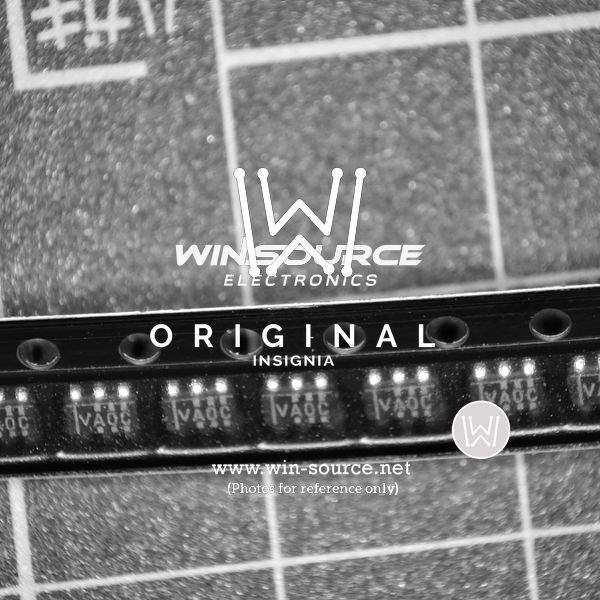

The TLV2460CDBVR comes in a compact SOT-23-5 package, which is highly beneficial for space-constrained applications. Texas Instruments ensures high-quality and reliability standards, making this operational amplifier a reliable choice for both industrial and commercial use.

Conclusion

With its combination of low power consumption, high output drive, and rail-to-rail input/output, the Texas Instruments TLV2460CDBVR operational amplifier is a versatile and efficient solution for a wide array of electronic designs. Its small footprint and robust performance make it an excellent choice for designers looking to optimize their systems for both power and space.
