Product Overview: TLK2201BRCPG4

The TLK2201BRCPG4 is a high-speed, single-channel transceiver from Texas Instruments designed for the demanding requirements of gigabit Ethernet, fiber channel, and telecommunications applications. This advanced transceiver integrates a Serializer/Deserializer (SerDes) with a range of features to provide reliable, high-performance data transmission over copper or fiber optic cabling systems.

Key Features

• High Data Rate: The TLK2201BRCPG4 supports data rates up to 1.6 Gbps, making it suitable for a variety of high-speed data communication protocols.
• Hot-Plug Protection: This device includes a hot-plug protection feature that prevents damage to the transceiver when cables are connected or disconnected while the system is powered on.
• Low Power Consumption: Designed with power efficiency in mind, the TLK2201BRCPG4 operates with low power dissipation, making it ideal for power-sensitive applications.
• Signal Conditioning: The built-in signal conditioning capabilities, such as programmable equalization and pre-emphasis, enhance signal integrity over extended cable lengths and challenging transmission media.
• Flexibility: It offers a flexible interface with support for both 16-bit and 20-bit parallel data bus widths, accommodating various system design requirements.

Applications

The TLK2201BRCPG4 is versatile and can be used in a range of applications, including:

• High-speed backplanes
• Networking equipment such as routers and switches
• Data storage systems
• Telecommunications infrastructure

Quality and Reliability

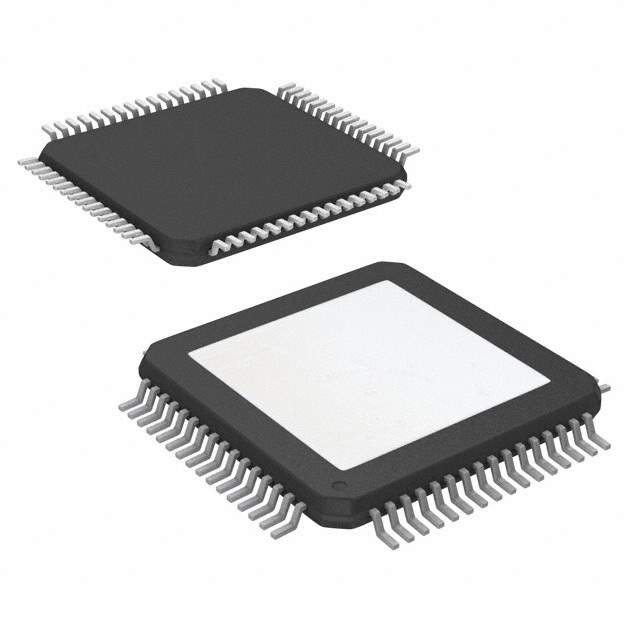

Texas Instruments is known for its commitment to quality, and the TLK2201BRCPG4 is no exception. This product is built to meet the high reliability standards required in industrial and commercial applications. It is available in a compact 64-pin QFP (Quad Flat Package), which allows for efficient use of PCB space.

In summary, the TLK2201BRCPG4 from Texas Instruments is a robust and reliable solution for system designers looking to implement high-speed data communications with confidence in the performance and durability of their products.
