The TLK10232CTR is a high-performance, dual-channel transceiver module from Texas Instruments, designed to facilitate bidirectional point-to-point data communications. This versatile device is capable of handling data rates up to 10.3125 Gbps per channel, making it an ideal solution for high-speed data transfer applications across a range of industries, including telecommunications, data centers, and high-performance computing.

The TLK10232CTR offers support for a variety of protocols, such as 10GBASE-R/KR, 40GBASE-CR4, and 100GBASE-CR10, ensuring compatibility with a wide array of existing and emerging networking standards. Its flexibility is further highlighted by its ability to operate over copper cables or backplanes, which allows for seamless integration into a multitude of system configurations.

Key Features

• Dual-Channel Operation: Each of the two channels can operate independently, providing simultaneous high-speed data transfers.
• High Data Rates: Supports up to 10.3125 Gbps per channel, accommodating the needs of bandwidth-intensive applications.
• Protocol Versatility: Compatibility with various Ethernet protocols ensures broad application use.
• Signal Conditioning: Integrated signal conditioning features such as equalization, clock and data recovery (CDR), and an electronic dispersion compensation (EDC) engine enhance signal integrity over long distances and through complex media.
• Low Power Consumption: Designed with energy efficiency in mind, the TLK10232CTR maintains low power dissipation, which is critical for reducing operational costs and thermal challenges in dense system designs.
• Robust Design: The device is built to withstand industrial temperature ranges, making it suitable for deployment in harsh environments.

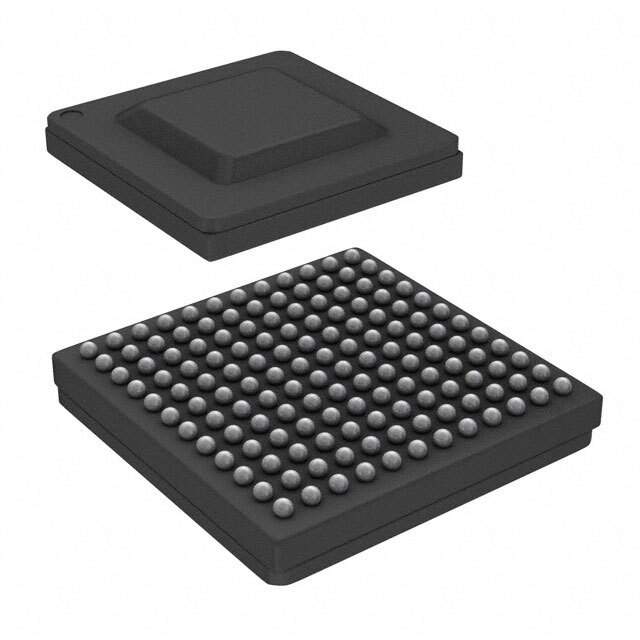

The TLK10232CTR is packaged in a compact form factor, which allows for high-density board designs and is available in a surface-mount package that is easy to integrate into existing PCB layouts. With its comprehensive feature set and robust design, the TLK10232CTR from Texas Instruments stands out as a premier choice for developers looking to implement high-speed data transfer capabilities in their systems.
