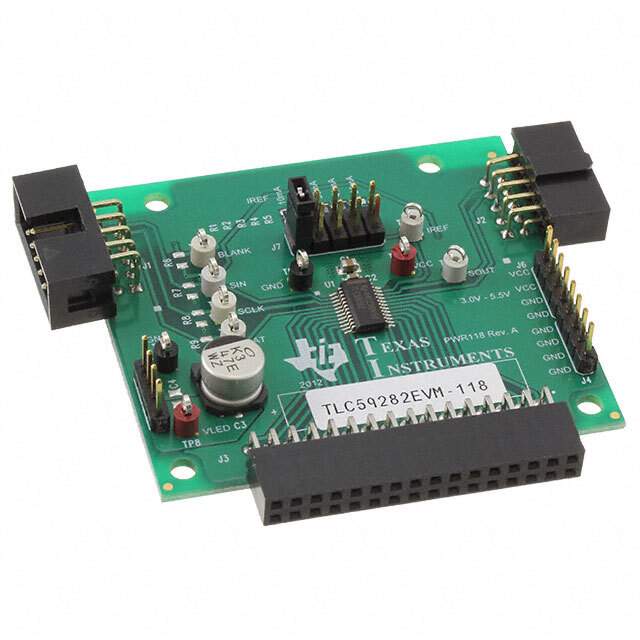

The TLC59282EVM-118 is a high-performance evaluation module (EVM) from Texas Instruments (TI) designed to demonstrate the capabilities of the TLC59282, a 16-channel, constant-current sink LED driver. This EVM provides designers with a flexible platform to test the TLC59282 LED driver in various configurations and applications, such as LED displays, signage, and lighting systems.

Key Features:

• 16 individually controllable LED channels with a constant current sink capability.
• Wide output current range from 5 mA to 120 mA per channel, allowing for a wide variety of LED types and brightness levels.
• Support for supply voltages from 3.0 V to 5.5 V, making it suitable for both battery-powered and line-powered applications.
• Integrated grayscale (GS) PWM dimming for each channel, providing precise brightness control and color mixing capabilities.
• Serial interface for data input, enabling the cascading of multiple devices for extended LED control without requiring additional microcontroller pins.

Advantages:

The TLC59282EVM-118 is designed with the user in mind, offering several advantages that make it an ideal choice for rapid prototyping and testing:

• Easy-to-use evaluation board with onboard connectors and test points for quick setup and measurement.
• Comprehensive documentation and reference designs to speed up the development process.
• Direct compatibility with TI's LaunchPad development kits for seamless integration into existing projects.

Applications:

The flexibility of the TLC59282EVM-118 makes it well-suited for a variety of applications, including but not limited to:

• Architectural and decorative lighting.
• Commercial and retail display lighting.
• Automotive interior, dashboard, and button backlighting.
• Professional stage and entertainment lighting.

With the TLC59282EVM-118, engineers and designers can quickly and efficiently validate the performance and functionality of the TLC59282 LED driver, accelerating the development of innovative lighting solutions.
