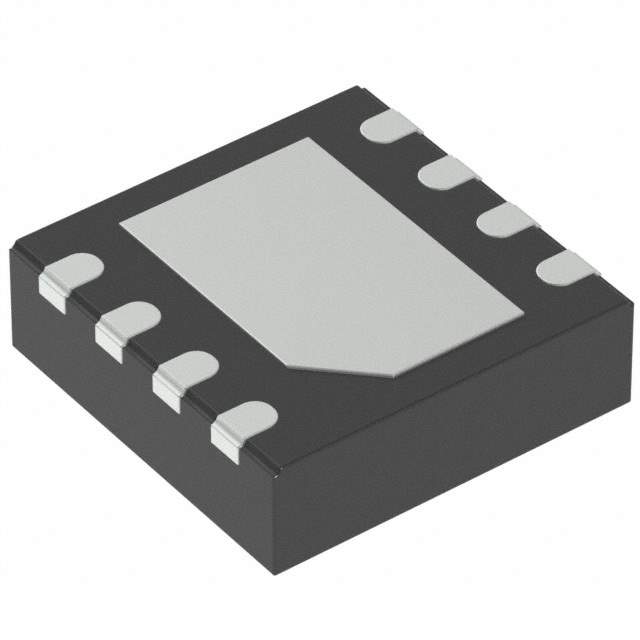

The THVD1451DRBR is a robust half-duplex RS-485 transceiver from Texas Instruments, designed to operate in demanding industrial environments. This interface IC is capable of facilitating communication on balanced transmission lines and is suitable for bidirectional data communication on multipoint bus transmission lines.

Key Features

• Electrical Signaling: The device is capable of differential signaling, which allows for longer cable runs and greater noise immunity, crucial for industrial settings.
• Speed: It supports data rates up to 50 Mbps, making it suitable for high-speed data acquisition and real-time control applications.
• ESD Protection: It comes with built-in electrostatic discharge (ESD) protection exceeding ±16 kV IEC 61000-4-2 (air-gap discharge) and ±8 kV IEC 61000-4-2 (contact discharge), which helps to prevent damage due to static electricity.
• Wide Common-Mode Range: The device operates over a wide common-mode range of -25 V to +25 V, enhancing data integrity in electrically noisy environments.
• Thermal Shutdown Protection: The THVD1451DRBR includes a thermal shutdown feature that protects the device from overheating.
• Versatile Supply Voltage: It operates from a single 3.3 V or 5 V supply, providing design flexibility across various systems.
• Low Power Consumption: The device features a low-power standby mode for power-sensitive applications.
• Industry-Standard Package: Offered in a compact 8-pin SOIC package, it saves board space and is compatible with existing designs.

Applications

The THVD1451DRBR is ideal for industrial applications such as factory automation, HVAC control systems, and building automation. Its robust design also makes it suitable for applications in areas such as motor drives, grid infrastructure, and telecommunications.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the THVD1451DRBR is no exception. It is designed to meet or exceed the stringent requirements of industrial applications, ensuring reliable performance in the field.
