Product Overview: THVD1410DR by Texas Instruments

The THVD1410DR is a robust, versatile RS-485 transceiver module from the renowned manufacturer Texas Instruments. Designed to facilitate reliable communication over long distances, this device is a preferred choice for industrial, networking, and automation applications where differential signal transmission is required for noise immunity and high data integrity.

Key Features

• High-Speed Data Transmission: The THVD1410DR supports data rates up to 50 Mbps, making it suitable for high-speed data communication requirements.
• Bus-Pin ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is provided on the bus pins, ensuring the device's resilience in harsh industrial environments.
• Wide Common-Mode Range: It operates over a wide common-mode range of ±25 V, which exceeds the industry-standard RS-485 requirements, ensuring reliable data transmission even in the presence of ground potential differences.
• Thermal Shutdown Protection: The built-in thermal shutdown feature prevents damage from overheating, thereby enhancing the longevity and reliability of the device.
• Low Power Consumption: It is optimized for low power consumption, which is critical for energy-efficient designs and battery-powered applications.
• Fail-Safe Receiver: The fail-safe receiver ensures a logic-high output when the inputs are open, shorted, or idle, providing additional safety and robustness to the system design.

Applications

• Industrial Control Systems
• Building Automation
• Network Equipment
• Telecommunications Systems

Technical Specifications

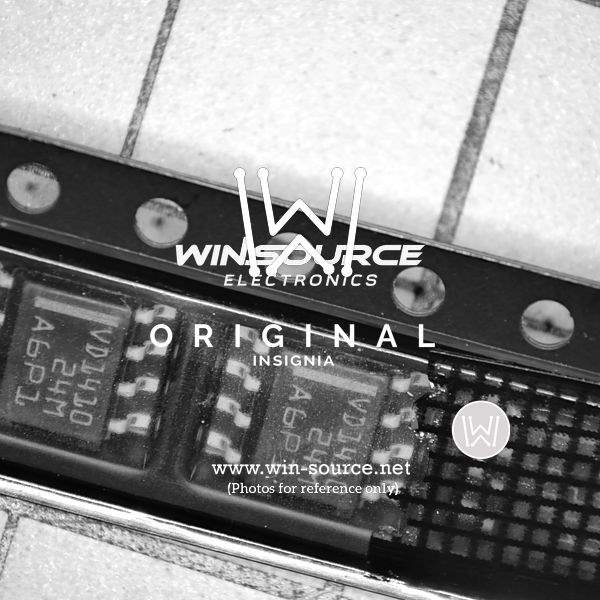

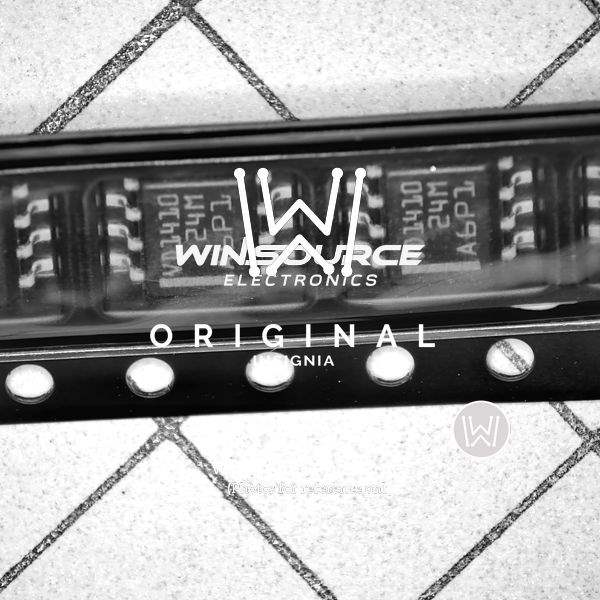

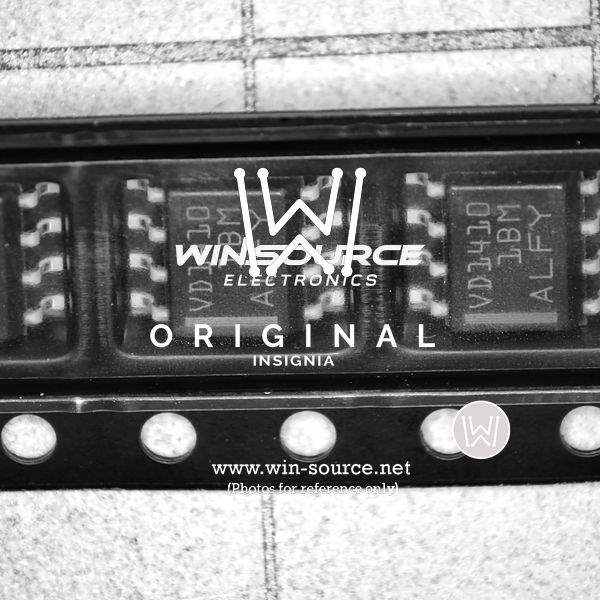

The THVD1410DR transceiver is available in an 8-pin SOIC package and operates over an industrial temperature range of -40°C to 125°C. With its integrated receiver and driver, it is engineered to comply with the TIA/EIA-485A standard. The device also features a low standby current, making it an excellent choice for power-sensitive applications.

Ordering Information

To incorporate the THVD1410DR into your design, you can order it directly from Texas Instruments or through authorized distributors. The device's reliability and performance are backed by Texas Instruments' commitment to quality and innovation.
