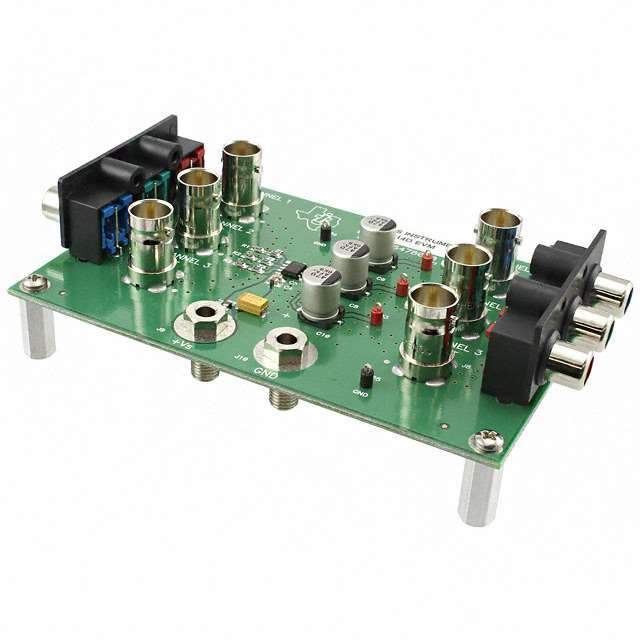

The THS7314EVM is an Evaluation Module designed by Texas Instruments to showcase the functionality and performance of the THS7314, a low-power, single-supply 3-channel integrated video amplifier. This amplifier is primarily intended for video applications such as SDTV video amplifiers, CCTV and DVRs, set-top boxes, and portable media players. Its flexible design and impressive specifications make it an ideal choice for engineers and designers looking to evaluate the THS7314 for their video processing needs.

Key Features

• 3-Channel Video Amplifier: The THS7314 features three high-speed video amplifiers, each with a 2-pole internal fixed filter that limits the bandwidth to 8 MHz for anti-aliasing and noise suppression.
• Low Power Consumption: With a typical power consumption of only 10.5 mW per channel, the THS7314 is optimized for battery-powered applications.
• Single-Supply Operation: The device operates from a single 2.7 V to 5 V supply, making it versatile for various system designs.
• Integrated I2C Control: The THS7314 includes an I2C programmable interface for easy control of functions such as filter characteristics, output swing, and input clamping.
• 6-dB Gain: It features a fixed 6-dB gain to drive 2 Vpp into a double-terminated 75-Ω load from a 1-Vpp input signal.

Benefits of Using THS7314EVM

The THS7314EVM provides a convenient platform for evaluating the THS7314 amplifier's features. It simplifies the testing process, allowing for quick and efficient performance assessments. The EVM includes onboard test points and inputs/outputs that facilitate easy connection to test equipment and other devices in the system. By using the THS7314EVM, designers can significantly reduce development time and accelerate the product-to-market timeline.

Applications

Due to its high integration and performance characteristics, the THS7314 is suitable for a wide range of video applications. These include:

• Standard Definition TV (SDTV) Video Amplifiers
• Closed-Circuit Television (CCTV) Systems
• Digital Video Recorders (DVR)
• Set-Top Boxes
• Portable Media Players

Overall, the THS7314EVM by Texas Instruments is an essential tool for any professional working with video amplification and processing, providing a straightforward evaluation experience for the THS7314 amplifier.
