The TCAN1051VDRBRQ1 is a state-of-the-art high-speed Controller Area Network (CAN) transceiver designed by Texas Instruments, specifically engineered to meet the rigorous standards of the automotive industry. This robust transceiver is ideal for in-vehicle networks and is designed to provide differential transmit and receive capability to (CAN) controllers and microcontrollers.

Key Features

• Compliance: The device meets the ISO 11898-2:2016 standard and is fully compatible with the ISO 11898-5:2007 standard for low-power operation.
• Protection: It comes with advanced features such as protection against damage due to direct battery connections, loss of ground, and over-temperature conditions.
• Error-Free Communication: The TCAN1051VDRBRQ1 ensures reliable communication in the presence of high electromagnetic interferences (EMI) typical for automotive environments.
• Battery Life: An integrated power-saving mode significantly reduces current consumption when the network is idle, thus preserving battery life.
• Flexibility: It supports both 3.3V and 5V operation, allowing for flexible use in different system designs.

Applications

• Automotive Networks
• Body Control Modules (BCM)
• Powertrain Applications
• Advanced Driver Assistance Systems (ADAS)
• Gateway Modules

Technical Specifications

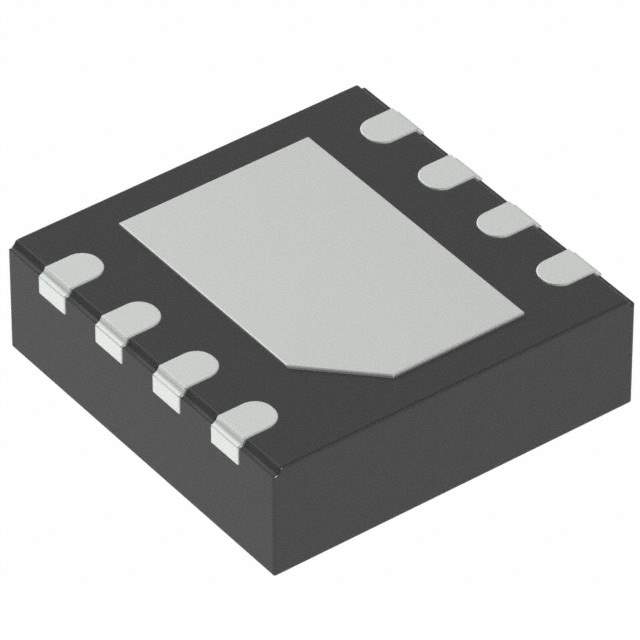

The transceiver operates over a wide industrial temperature range of -40°C to +125°C. It features a bus fault protection of ±58V, and its transmitting data rate can go up to 5 Mbps. Moreover, the TCAN1051VDRBRQ1 comes in an 8-pin VSON package with wettable flanks, making it suitable for automated optical inspection (AOI) processes in manufacturing.

Quality and Reliability

As with all Texas Instruments products, the TCAN1051VDRBRQ1 is designed for quality and reliability. It is AEC-Q100 qualified, ensuring it meets the automotive industry's stringent quality standards.

For detailed specifications, application notes, and evaluation modules, interested parties should visit the Texas Instruments official website or contact their sales and support team.
