Category Integrated Circuits (ICs) - Linear - Amplifiers - Audio Amplifiers
Mfr Texas Instruments
Series PurePathâ„¢ HD
Package Tray
Product Status Active
Type Class D
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load 250W x 1 @ 2Ohm; 165W x 2 @ 3Ohm
Voltage - Supply 16V ~ 34.1V
Features Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 70°C (TA)
Supplier Device Package 64-HTQFP (14x14)
Package / Case 64-TQFP Exposed Pad
Base Product Number TAS561
Standard Package 90 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 681426-TAS5612PHD
Ultra Librarian 3D Model Ultra Librarian TAS5612PHD CAD Model

Description

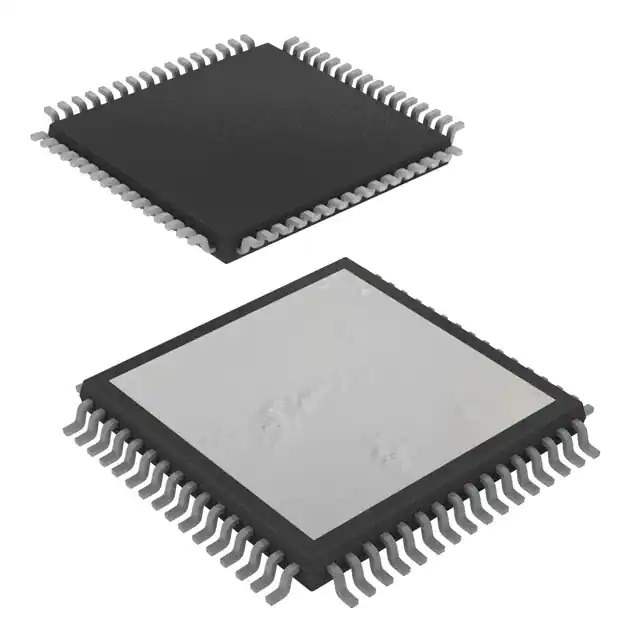

The Texas Instruments TAS5612PHD is a high-performance, integrated stereo digital amplifier power stage designed to deliver premium audio quality with high efficiency. This component is part of TI's PurePathâ„¢ HD technology lineup, which is renowned for its ability to produce clear, high-definition audio while minimizing power loss and heat generation.

The TAS5612PHD is capable of delivering up to 125W of continuous average power to an 8-Ohm load with less than 10% THD+N from a 36V supply. For 4-Ohm speakers, it can provide up to 150W with the same level of distortion, making it an excellent choice for a wide range of high-fidelity audio applications including home theater systems, professional audio equipment, and active speakers.

Featuring an advanced closed-loop architecture, the TAS5612PHD maintains the benefits of traditional Class D amplifier designs, such as efficiency and reduced component count, while improving audio performance and reducing idle losses. The device operates over a wide power supply range from 20V to 36V, which allows for flexible design options to meet various power requirements.

The amplifier also includes a number of built-in protection features to ensure reliability and durability. These include over-current, over-temperature, under-voltage, and DC protection. Additionally, the TAS5612PHD supports multiple switching frequencies (400kHz to 600kHz), which designers can select to optimize for size, efficiency, and audio performance.

With its exposed-pad HTSSOP packaging, the TAS5612PHD ensures improved thermal performance and a smaller footprint on the PCB, which is ideal for space-constrained applications. The product is also RoHS compliant and supports the use of lead-free soldering, reflecting Texas Instruments' commitment to environmental sustainability.

Overall, the TAS5612PHD from Texas Instruments represents a sophisticated solution for modern audio amplification, offering both power and precision to deliver a superior listening experience.
