Overview of TAS5112DFDRG4

The TAS5112DFDRG4 is a high-performance, integrated stereo digital amplifier power stage from Texas Instruments, designed to deliver premium audio quality in a compact and efficient package. This advanced audio solution is ideal for a variety of applications, including home theater systems, desktop audio systems, and active speakers.

Key Features

• High Output Power: The TAS5112DFDRG4 can deliver up to 50W per channel into a 4-ohm load, providing ample power for most audio applications.
• Efficiency: With its advanced architecture, the device operates with high efficiency, reducing heat dissipation and eliminating the need for bulky heatsinks, making it suitable for space-constrained applications.
• Audio Quality: The device is engineered to provide high-quality audio performance with low distortion and noise, ensuring a clear and detailed sound experience.
• Thermal Protection: It includes an over-temperature protection feature that shuts down the device if it exceeds the safe operating temperature, safeguarding the amplifier and speakers from damage.
• Flexible Power Supply: The TAS5112DFDRG4 is designed to operate over a wide power supply range, accommodating various system requirements.
• Integrated Gate Drivers: The inclusion of built-in gate drivers simplifies the design and reduces external component count.

Applications

• Home Theater Systems
• Desktop Audio Systems
• Active Speakers
• Multi-channel Audio Systems

Technical Specifications

• Output Power: Up to 50W per channel (4Ω)
• Load Impedance: Compatible with 4Ω to 8Ω speakers
• Supply Voltage: Wide range to accommodate different system designs

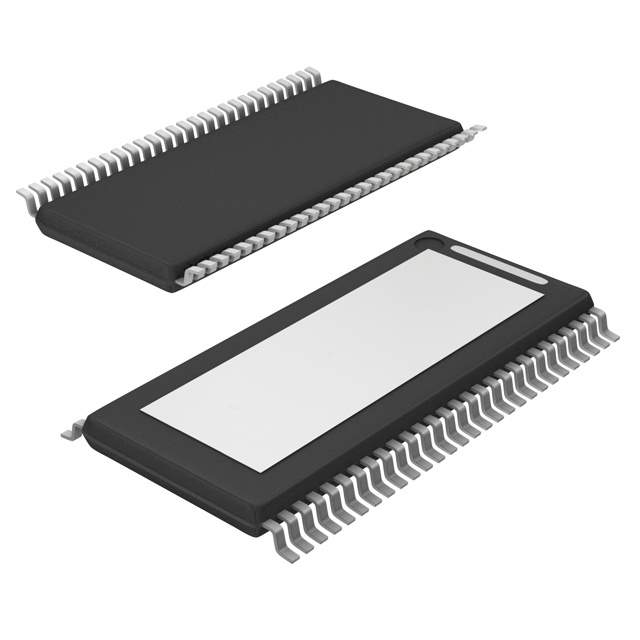

• Package: PowerPAD™ HTSSOP packaging for improved thermal performance
• Signal-to-Noise Ratio (SNR): High SNR for cleaner audio reproduction

The TAS5112DFDRG4 is a testament to Texas Instruments' commitment to providing innovative and reliable solutions for audio amplification. Its combination of power, efficiency, and audio quality makes it an excellent choice for designers looking to create superior audio products.
