Product Overview: SN74LVCH16543ADGG

The SN74LVCH16543ADGG is a high-performance integrated circuit designed and manufactured by Texas Instruments, a leader in the semiconductor industry. This device is part of the LVCH series, which stands for Low-Voltage CMOS with Bus Hold. It is a 16-bit transparent D-type latch with 3-state outputs, ideal for use in applications requiring temporary storage of data and smooth data flow control in a digital system.

Key Features:

• Technology: The device is built using advanced CMOS technology, which ensures low power consumption and high speed.
• Voltage Range: It operates at a nominal voltage of 3.3V, but can handle a wide range of supply voltages from 2.3V to 3.6V, making it versatile for various low-voltage applications.
• Bus Hold: It includes a bus hold feature that maintains the last active state of the input without the need for an external pull-up or pull-down resistor.
• High Drive: The SN74LVCH16543ADGG can drive up to -24mA at the output, providing strong signal integrity.
• 3-State Outputs: The 3-state outputs allow for connection to a bus-oriented system, enabling multiple devices to share the same bus lines without interference.
• Flow-Through Architecture: The design of the latch facilitates easy PCB layout with its flow-through architecture, optimizing signal integrity and minimizing noise.

Applications:

Due to its versatility and performance, the SN74LVCH16543ADGG is suitable for a wide array of applications. These include:

• Memory storage and retrieval systems
• Data communication and networking
• Bus interface and extension
• Signal buffering and isolation
• Industrial control systems

Package and Quality:

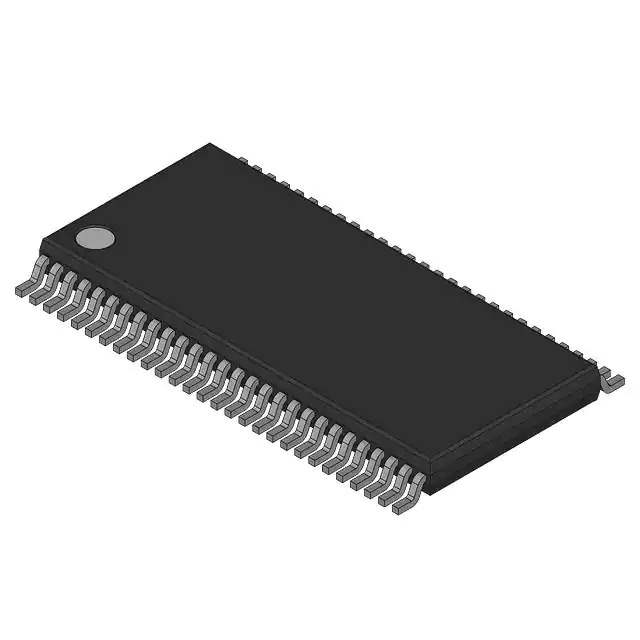

The device comes in a 48-pin TSSOP (Thin Shrink Small Outline Package) which is ideal for space-constrained applications. Texas Instruments ensures the highest quality standards, and the SN74LVCH16543ADGG is no exception, providing reliability and performance for critical digital logic applications.
