SN74LVC32244ZKER - Texas Instruments

The SN74LVC32244ZKER from Texas Instruments is a high-performance, 32-bit bus transceiver designed with a low-voltage CMOS technology. This device is particularly suited for down-voltage interfacing applications, enabling the transition from a 3.3V to 2.5V system environment with optimal power consumption and speed performance.

Key Features:

• Interface Type: The SN74LVC32244ZKER is a 32-bit non-inverting bus transceiver with 3-state outputs, allowing for bidirectional communication between two buses.
• Operating Voltage: It operates at a voltage range of 2.7V to 3.6V, making it compatible with low-voltage systems and ensuring reduced power consumption.
• Drive Capability: The device offers high drive capability, with 24-mA balanced output drivers and ±12-mA input hysteresis.
• Data Flow Control: Directional control is provided by nOE (output enable) and nDIR (direction) inputs, facilitating the management of data flow without the need for additional interface components.
• Speed: It features a high-speed data transfer capability, which is crucial for modern high-speed logic systems.
• Compatibility: The LVC family ensures compatibility with mixed-voltage systems, allowing for seamless integration with both 3.3V and 2.5V logic levels.

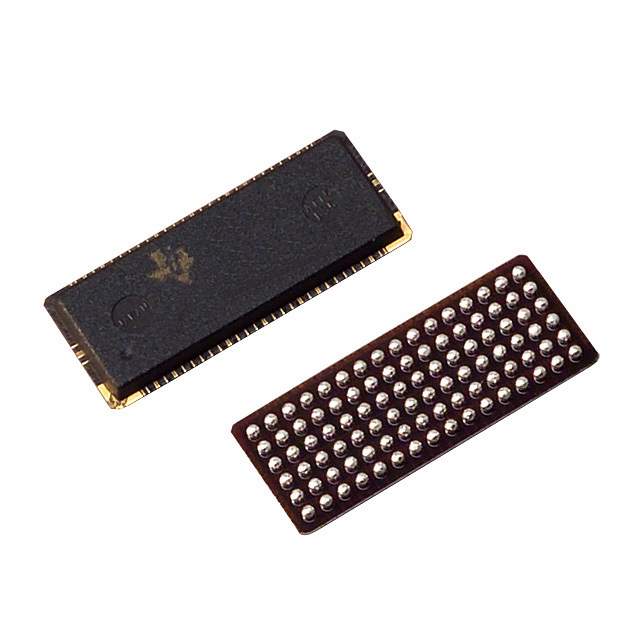

• Packaging: The device is available in a 96-pin BGA (ZKE) package, providing a compact footprint for space-constrained applications.

Applications:

The SN74LVC32244ZKER is suitable for a wide range of applications, including memory interfacing, data communication, and signal gating in systems such as:

• Computers and Computer Peripherals
• Data Storage and Servers
• Telecommunication Infrastructure
• Industrial Control Systems
• Consumer Electronics

With its robust design and advanced technical specifications, the SN74LVC32244ZKER is an ideal choice for designers seeking a reliable and efficient solution for high-speed data transfer and bus management in their electronic systems.
