Product Description: SN74LVC1G240DCKR from Texas Instruments

The SN74LVC1G240DCKR is a high-quality single bit, non-inverting buffer/driver from Texas Instruments. This device is designed for 1.65-V to 5.5-V VCC operation. It is part of the SN74LVC1G240 series, which is recognized for its exceptional performance and reliability.

The SN74LVC1G240DCKR is equipped with an output enable (OE) input that can disable the output to a high impedance state. This feature allows for the stacking of multiple devices without the need for external pull-up or pull-down resistors. The device also includes a latch-up performance that exceeds 100 mA per JESD 78, Class II, offering enhanced robustness and durability.

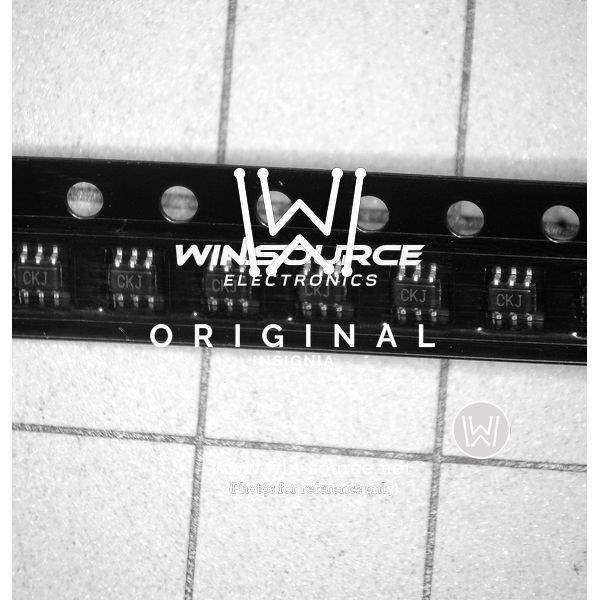

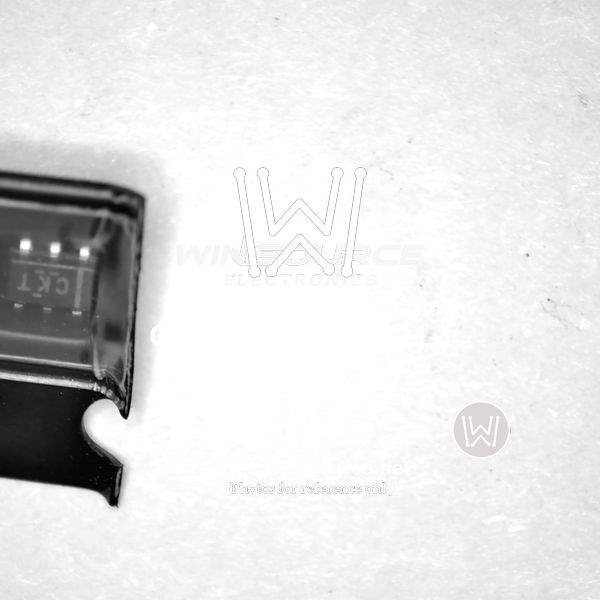

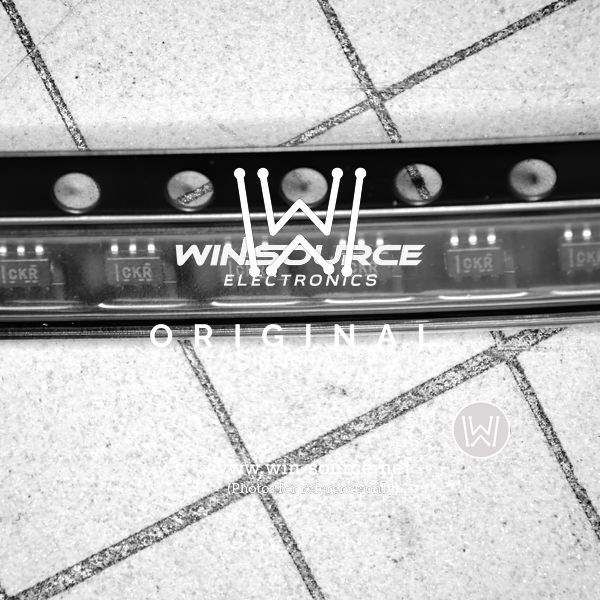

The SN74LVC1G240DCKR is packaged in a compact 5 pin SC-70, making it suitable for space-constrained applications. It operates over a broad temperature range from -40°C to 85°C, ensuring reliable performance in a variety of environments.

Key features of the SN74LVC1G240DCKR include its ability to function at a maximum tpd of 5.3 ns at 3.3 V, a typical VOH of 2.3 V or 2.7 V at 3.3 V, and a typical VOL of 0.2 V or 0.4 V at 3.3 V. These features, combined with its low power consumption, make this device an excellent choice for a wide range of applications, including servers, personal computers, networking equipment, and other high-performance digital applications.

With its high drive capability and wide voltage range, the SN74LVC1G240DCKR from Texas Instruments is a versatile and reliable choice for your digital buffering and driving needs. Its robust features and compact form factor make it an integral component in any high-performance digital system.
