The SN74LS642NSR is a high-performance octal bus transceiver designed by Texas Instruments, a leader in semiconductor innovation. This integrated circuit is part of the 74LS family and is optimal for facilitating bidirectional communication between two buses. The device has a wide range of applications, including data transfer in microprocessor-based systems, memory switching, and peripheral driving where dual-directional data flow is required.

Key Features:

• Logic Type: Octal Bus Transceiver
• Logic Family: LS
• Operating Temperature Range: 0°C to 70°C, suitable for commercial-grade applications.

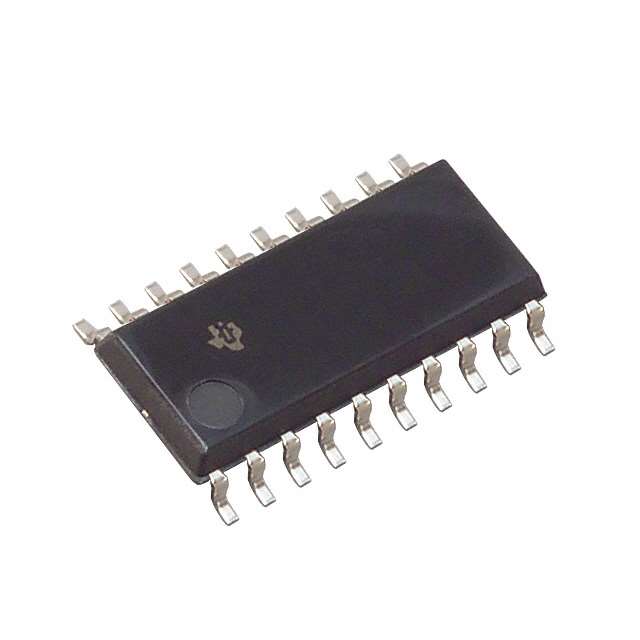

• Package / Case: SOP-20, a small-outline package that saves space on PCBs.
• Mounting Type: Surface Mount, providing a reliable connection and ease of assembly in volume production.
• Number of Pins: 20, facilitating connectivity to a variety of microprocessor or microcontroller systems.
• Logic Voltage Levels: Compatible with standard TTL levels, ensuring easy integration with existing digital systems.
• Directional Control: Direction pin (DIR) and output enable (OE) for controlled data flow.
• Bus Hold Function: Maintains the last active bus state during tri-state or power-off conditions, enhancing data integrity.

Product Description:

The SN74LS642NSR is engineered to transmit data from the A bus to the B bus or vice versa, depending on the logic level at the direction control (DIR) input. The output enable (OE) input can disable the device so that the buses are effectively isolated. The device's true logic design allows non-inverting data transmission. With its robust design, it can handle multiple power and ground pins to minimize noise and ensure stable operation.

Constructed with bipolar technology, the SN74LS642NSR provides a perfect blend of speed and power consumption, making it an ideal choice for interfacing with high-speed microprocessors and in systems with bus line capacitance requirements. Its bus hold feature ensures that the outputs remain at their last state when the bus lines are floating, thus preventing data corruption during the absence of input signals.

With its industry-standard SOP-20 package, the SN74LS642NSR is easy to integrate into a wide array of electronic systems, offering designers a reliable and flexible solution for their data transmission needs.
