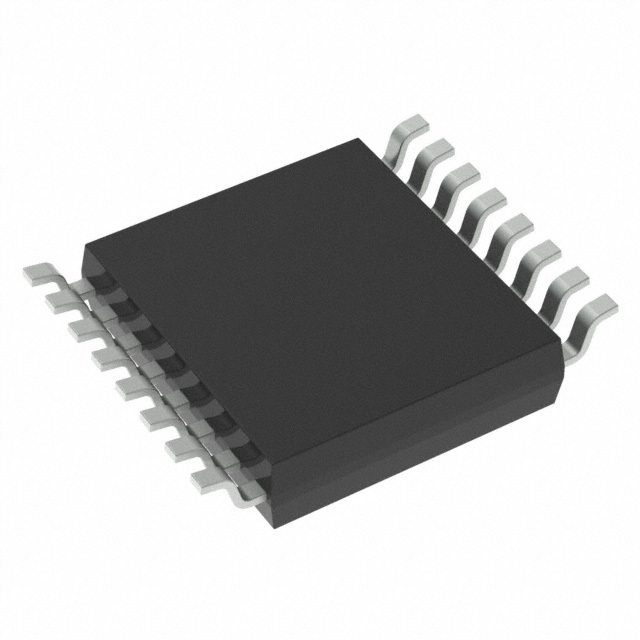

Product Overview: SN74HCS595PWR by Texas Instruments

The SN74HCS595PWR is a state-of-the-art 8-bit shift registers designed and manufactured by Texas Instruments (TI), a global semiconductor company that designs and manufactures analog ICs and embedded processors. This device is part of the 74HCS logic family and is particularly suited for driving LEDs and other display elements where low-power consumption and high-speed operation are paramount.

Key Features

• Shift Register Type: Serial to Parallel
• Output Type: 3-State
• No. of Bits: 8 bits
• Supply Voltage Range: 2 V to 6 V
• Logic Case Style: TSSOP
• No. of Pins: 16 pins
• Operating Temperature Range: -40°C to +85°C
• Mounting Type: Surface Mount

Performance Characteristics

The SN74HCS595PWR features a wide operating voltage range, making it versatile for various applications. It is capable of shifting data at high speeds, and its 3-state outputs can drive bus lines or buffer memory address registers. The device also includes an output enable function, which simplifies the cascading of multiple registers for applications requiring longer shift registers.

Applications

The TI SN74HCS595PWR is commonly used in a variety of electronic applications, including:

• LED displays
• Digital signage
• Industrial control systems
• Data acquisition systems
• Consumer electronics

Quality and Reliability

As with all Texas Instruments products, the SN74HCS595PWR is designed to meet the highest standards of quality and reliability. It is manufactured in a TSSOP package, which is known for its small size and high level of integration. TI's commitment to excellence ensures that this shift register provides consistent performance and durability for the demanding needs of modern electronic systems.
