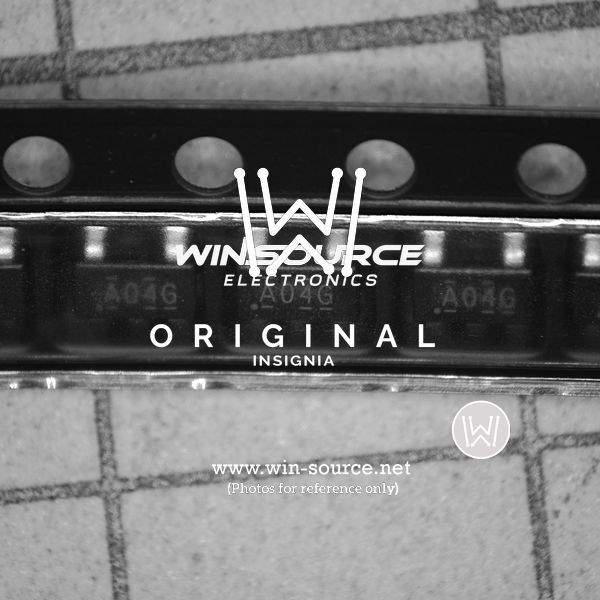

SN74AHC1G04DBVR Real Image SN74AHC1G04DBVR real image5859 SN74AHC1G04DBVR Real Image
Same model may have multiple batches, images only for reference.

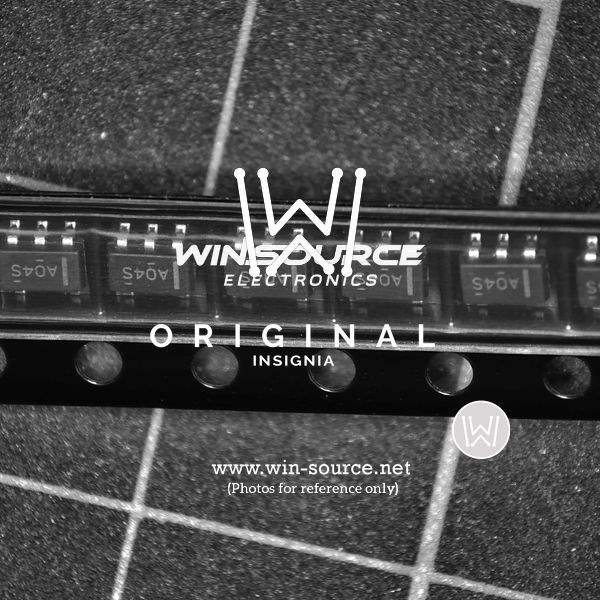

SN74AHC1G04DBVR Real Image SN74AHC1G04DBVR real image5859 SN74AHC1G04DBVR Real Image
SN74AHC1G04DBVR Real Image SN74AHC1G04DBVR real image5859 SN74AHC1G04DBVR Real Image
Same model may have multiple batches, images only for reference.

SN74AHC1G04DBVR

Part No SN74AHC1G04DBVR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC SINGLE INVERTER GATE SOT23-5
Datasheet
SN74AHC1G04DBVR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Supply Voltage - Operating 2 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 8mA, 8mA
Logic Level - Low 0.5 V to 1.65 V
Logic Level - High 1.5 V to 3.85 V
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Dimension SC-74A, SOT-753
Win Source Part Number 029732-SN74AHC1G04DBVR
Family Name SN74AHC1G04
Introduction Date November 01, 2009
ECCN EAR99
Country of Origin Thailand, China
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Portable Devices, Communications & Networking
Country of Origin China, Thailand
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SN74AHC1G04DBVR CAD Model

Description

The SN74AHC1G04DBVR is a high-quality, single gate logic IC product developed and manufactured by Texas Instruments, a world-renowned leader in the semiconductor industry.

  • Operating Voltage Range: 2V to 5.5V
  • Temperature Range: -40°C to 85°C
  • Features: Schmitt-trigger action @ all inputs
  • Package: small-outline SOT-23-5 package
  • Compliance: RoHS compliant and free from lead, bromide and antimony
  • Compatibility: Compatible with the CMOS technology
