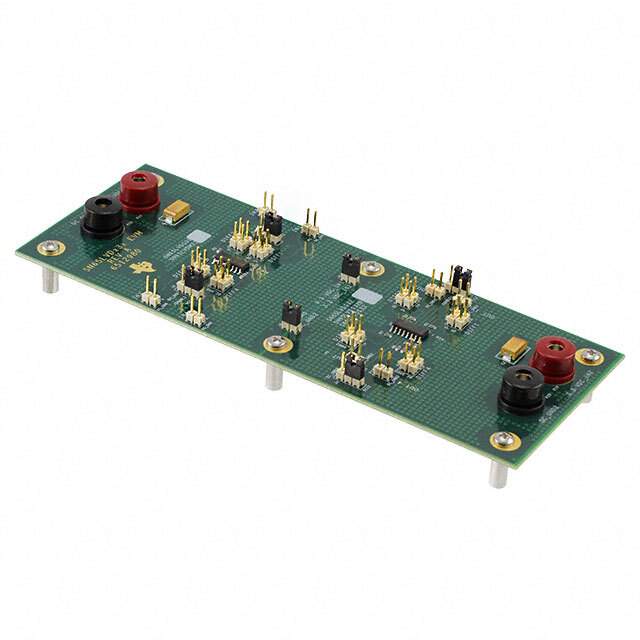

SN65LVDS31-32BEVM Evaluation Module from Texas Instruments

The SN65LVDS31-32BEVM is an evaluation module designed to demonstrate the performance and capabilities of the SN65LVDS31 and SN65LVDS32 quad differential line drivers and receivers from Texas Instruments. This evaluation module is an essential tool for engineers and designers who are interested in implementing high-speed differential signaling in their applications.

Key Features

• High-Speed Performance: The SN65LVDS31 driver and SN65LVDS32 receiver support signaling rates up to 400 Mbps, making them suitable for high-speed data transmission applications.
• Low-Voltage Differential Signaling (LVDS): The use of LVDS technology ensures low power consumption and minimizes EMI, while also providing high noise immunity.
• Robust Design: The devices are designed to operate over a wide common-mode voltage range, which enhances their robustness in challenging electrical environments.
• Interoperability: These chips are compatible with TIA/EIA-644 LVDS standard, ensuring they can be used in a wide variety of applications and with other LVDS-compliant devices.
• Flexible Power Supply: The SN65LVDS31-32BEVM can operate from a single 3.3V supply, providing flexibility in system design.

Applications

The SN65LVDS31-32BEVM is well-suited for a range of applications that require high-speed data transfer and robust signal integrity. Typical applications include:

• Telecommunications infrastructure
• High-speed data acquisition systems
• Computer networking equipment
• Industrial control and automation

Easy to Use

The evaluation module comes with all the necessary features to facilitate easy testing and evaluation. It includes connectors and test points that allow for straightforward access to the driver and receiver inputs and outputs. Additionally, comprehensive technical documentation and support are available from Texas Instruments to assist with the integration and use of the SN65LVDS31-32BEVM in various design scenarios.

With its combination of high-speed performance, LVDS technology, and ease of use, the SN65LVDS31-32BEVM from Texas Instruments is an excellent choice for engineers looking to evaluate LVDS differential signaling solutions for their next project.
