The SN65HVD3086ED from Texas Instruments is a robust low-power transceiver designed for RS-485 and RS-422 communication protocols. This device is part of a family of transceivers intended to operate with a 3.3V supply, making it particularly suitable for applications where power efficiency is crucial.

Key Features

• Compatibility: The SN65HVD3086ED is fully compliant with the TIA/EIA-485A standard, ensuring reliable communication in multi-point networks.
• Low Power Consumption: With its low quiescent current, the device is optimized for battery-powered and power-sensitive applications.
• Wide Common-Mode Range: The transceiver can handle common-mode voltages from -7V to +12V, providing robust data communication over long cable runs.
• High ESD Protection: The device features built-in electrostatic discharge (ESD) protection exceeding 15 kV on the bus pins, safeguarding the transceiver against transient voltage spikes.
• Half-Duplex Operation: Designed for half-duplex communication, this transceiver allows for bidirectional data transmission over a single pair of wires.
• Wide Temperature Range: The SN65HVD3086ED is operational across an industrial temperature range of -40°C to 85°C, suitable for harsh environments.

Applications

The versatility of the SN65HVD3086ED makes it an ideal choice for a wide array of applications, including:

• Industrial control systems
• Building automation
• Networked security cameras
• Remote sensors and data acquisition systems
• Point-of-sale equipment

Package and Quality

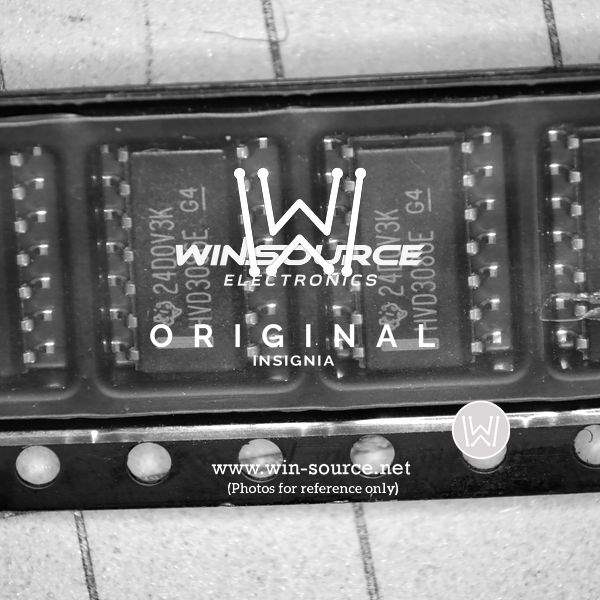

The SN65HVD3086ED is available in an 8-pin SOIC package, providing a compact solution for space-constrained applications. Texas Instruments ensures high manufacturing standards, offering a reliable and consistent performance for your critical communication needs.

For engineers and designers looking for a dependable low-power transceiver for RS-485/RS-422 communication, the SN65HVD3086ED from Texas Instruments stands out as a superior choice, blending performance with power efficiency.
