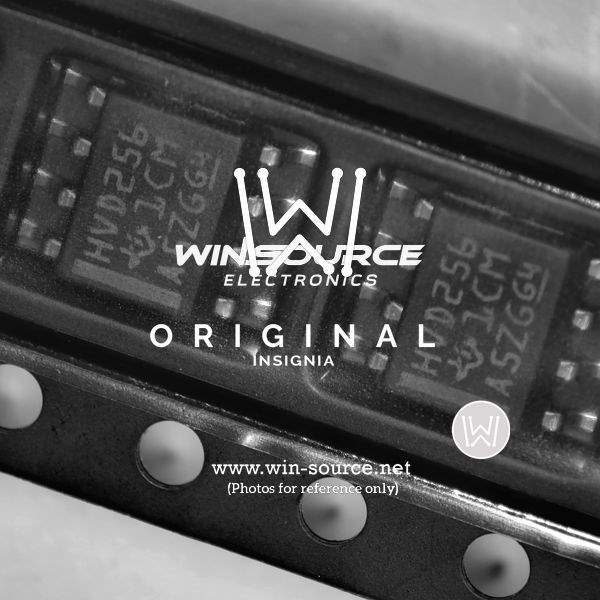

The SN65HVD256D from Texas Instruments is a robust, high-performance Controller Area Network (CAN) transceiver that serves as an interface between a CAN protocol controller and the physical two-wire CAN bus. Designed for automotive and industrial applications, this device is compliant with the ISO 11898 standard, ensuring reliable communication in challenging environments.

Key Features

• High-Speed CAN Interface: With a signaling rate of up to 1 Mbps, the SN65HVD256D is capable of high-speed data transmission suitable for real-time applications.
• Low Power Mode: The device includes a low-power standby mode that significantly reduces current consumption when the network is idle, contributing to energy-efficient designs.
• Protection Features: Equipped with protection against bus fault conditions, including positive and negative transient voltage events, ensuring resilience and long-term reliability.
• Thermal Shutdown: An integrated thermal shutdown feature protects the device from damage due to excessive temperature.
• Differential Receiver: The transceiver's differential receiver provides high immunity to electromagnetic interference (EMI), which is critical in noisy industrial environments.

Applications

The SN65HVD256D is well-suited for a wide range of applications where reliable CAN communication is essential. These include:

• Automotive networks
• Industrial automation systems
• Building automation
• Medical equipment
• Heavy machinery control

Technical Specifications

For engineers and designers requiring a reliable solution for CAN communication, the SN65HVD256D offers a mix of performance, protection, and low-power operation, making it an excellent choice for a variety of demanding applications.
