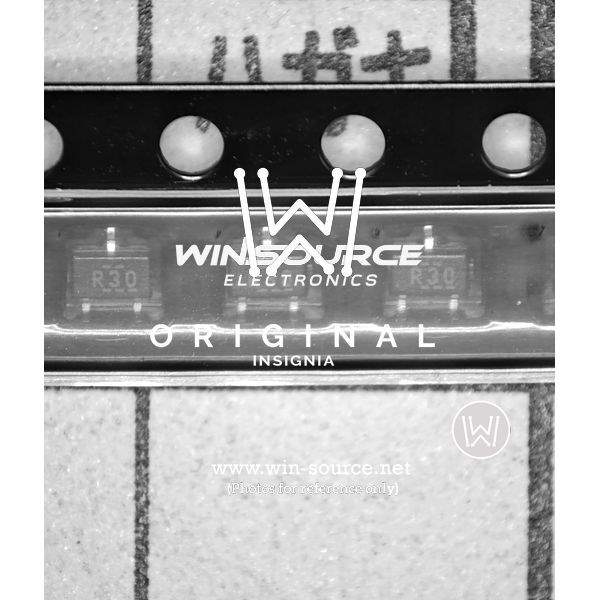

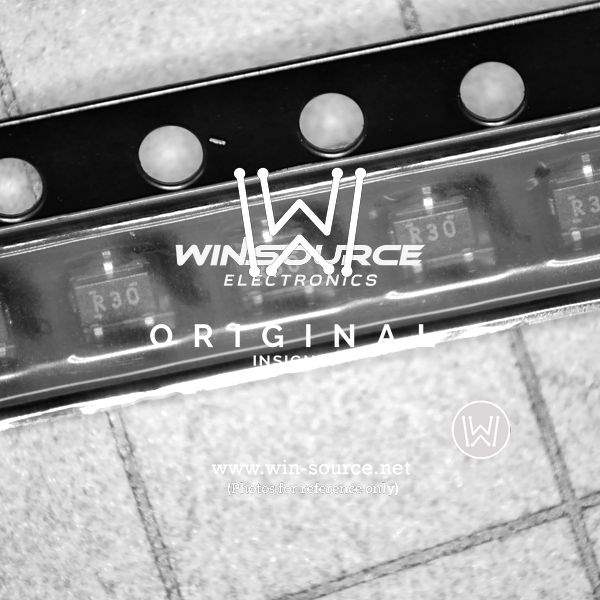

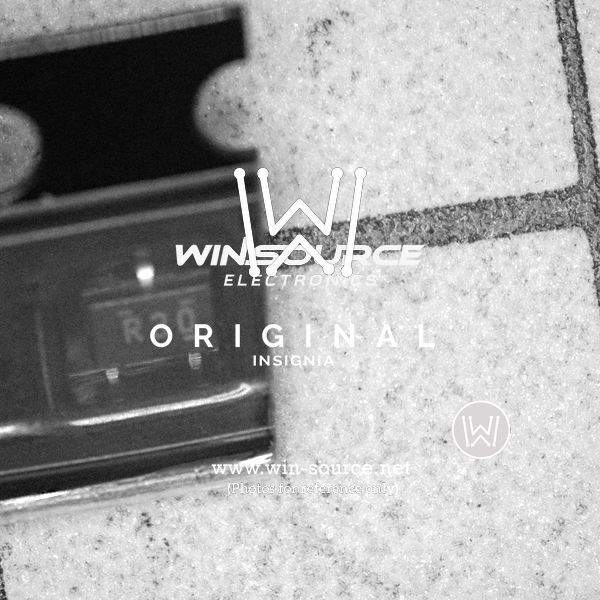

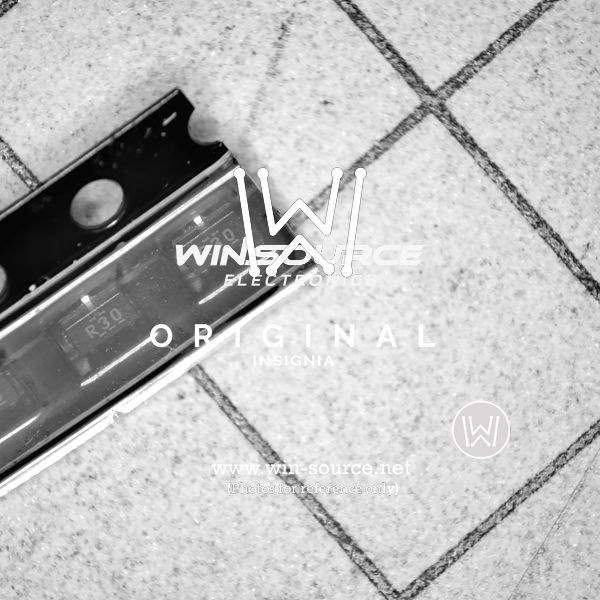

REF3330AIDCKR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Series
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 3V
Output Current 5mA
Tolerance ±0.15%
Temperature Coefficient 30ppm/°C
Noise - 0.1Hz to 10Hz 84μVp-p
Voltage - Input 3.2 V to 5.5 V
Operating Supply Current 8.5μA
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package SC-70-3
Win Source Part Number 083628-REF3330AIDCKR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Portable Devices, Consumer Electronics, Sensing & Instrumentation, Test & Measurement, Medical, Power Management
Ultra Librarian 3D Model Ultra Librarian REF3330AIDCKR CAD Model

Description

The REF3330AIDCKR is a highly advanced, low-dropout voltage reference product from Texas Instruments, a globally recognized leader in the semiconductor industry.

  • Reference Voltage: 3.0V
  • Output Current: 10mA (maximum)
  • Dropout Voltage: less than 10mV @ full load
  • Temperature Coefficient: 50ppm/°C (max) over a temperature range from -40°C to +125°C
  • Initial Accuracy: 0.2% @ 25°C
  • Quiescent Current: 100uA (max)
