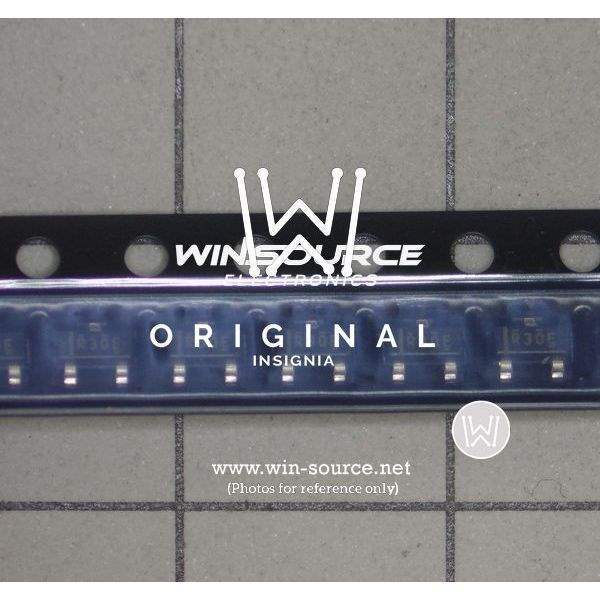

Product Overview: REF3040AIDBZRG4

The REF3040AIDBZRG4 is a high-precision, low-power, low-dropout voltage reference from Texas Instruments. This device is part of TI's family of bandgap voltage references that offer excellent accuracy and temperature stability over a wide range of operating conditions.

Key Features

• High Accuracy: The REF3040AIDBZRG4 offers an impressive initial accuracy of 0.5% and ensures minimal deviation over time, making it ideal for high-precision applications.
• Low Power Consumption: With a quiescent current of only 50µA (typical), this voltage reference is optimized for battery-powered and energy-efficient systems.
• Low Dropout Voltage: The device operates with a very low dropout voltage, which enhances its performance in systems with limited headroom above the regulated output voltage.
• Temperature Stability: Exhibiting excellent temperature stability, the REF3040AIDBZRG4 maintains its accuracy across a wide temperature range of -40°C to 125°C.
• Small Package Size: The product is available in a tiny SOT-23 package, which is perfect for space-constrained applications.

Applications

The REF3040AIDBZRG4 is well-suited for a variety of applications that demand a stable and precise reference voltage. These include:

• Portable and battery-powered equipment
• Data acquisition systems
• Medical and healthcare devices
• Industrial instrumentation
• Precision power supplies
• Analog-to-digital converters (ADCs)
• Digital-to-analog converters (DACs)

Product Specifications

Equipped with a fixed 4.096V output voltage, the REF3040AIDBZRG4 is designed to be a robust and reliable component for systems that require a stable reference point. Its low thermal drift and ability to source/sink up to 10mA of output current make it highly versatile for different circuit configurations.

Conclusion

Overall, the REF3040AIDBZRG4 from Texas Instruments stands out as a superior choice for designers who require a stable, accurate, and low-power voltage reference. Its small size and robust performance under varying conditions make it a go-to component for precision electronic applications.
