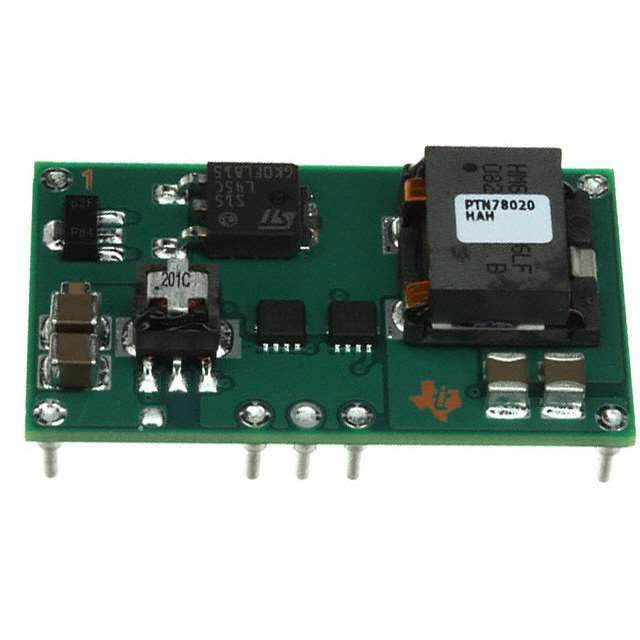

PTN78020HAH Real Image PTN78020HAH Real Image
PTN78020HAH Real Image PTN78020HAH Real Image
Same model may have multiple batches, images only for reference.

PTN78020HAH

Part No PTN78020HAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 11.85-22V 6A HORZ T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 20
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTN78020H
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 15V
Voltage - Input (Max) 36V
Voltage - Output 1 11.85 ~ 22 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features With UVLO
Mounting Style Through Hole
Package 7-DIP Module
Size / Dimension 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 96%
Power (Watts) - Max 90W
Catalog PTN78020H Series
Win Source Part Number 082100-PTN78020HAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, HVAC, Test & Measurement, Medical, Automotive, Avionics
Ultra Librarian 3D Model Ultra Librarian PTN78020HAH CAD Model

Description

The PTN78020HAH is a highly advanced, high-performance, wide-input voltage range power module from Texas Instruments.

  • Type: 3-A, single-output, non-isolated, adjustable power module
  • Input Voltage Range: 7.0V to 36V
  • Output Voltage: Adjustable via an external resistor within a range of 2.5V to 12.6V
  • Efficiency: Up to 96%
  • Control: On/off inhibit control and an under-voltage lockout feature
  • Operating Temperature Range: -40°C to +85°C
  • Protection Features: Over-temperature and over-current protection features
  • Package: Compact, horizontal through-hole package
