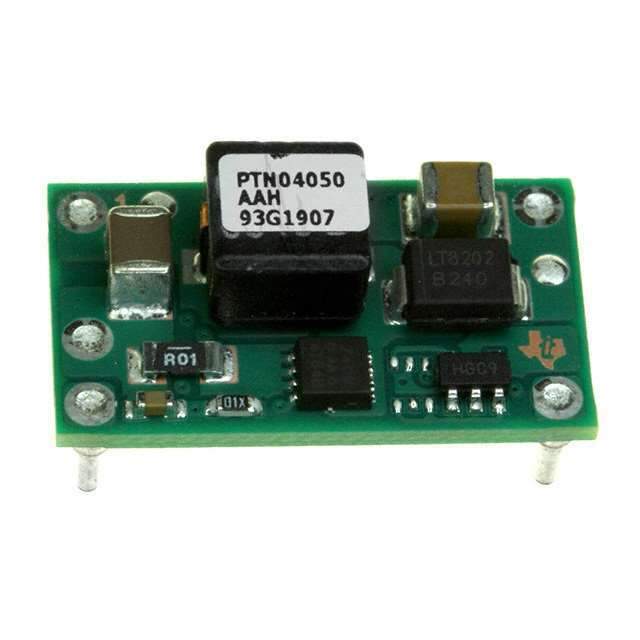

PTN04050AAH

Name: PTN04050AAH
Brand: Texas Instruments
SKU: 283954
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTN04050AAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	REGULATOR WIDE-VIN 6W HORZ T/H
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	56
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTN04050A
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.9V
Voltage - Input (Max)	7V
Voltage - Output 1	-15 ~ -3.3 V
Current - Output (Max)	1A
Applications	ITE (Commercial)
Features	With UVLO
Mounting Style	Through Hole
Package	5-DIP Module
Size / Dimension	0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	80%
Power (Watts) - Max	6W
Catalog	PTN04050A Series
Win Source Part Number	085136-PTN04050AAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTN04050AAH CAD Model

Alternative Products

Description

The PTN04050AAH is a high-performance, integrated power module from Texas Instruments, a renowned global semiconductor company.

Type: Non-isolated power module
Output Voltage: Adjustable from 0.9V to 3.6V
Input Voltage Range: 2.95V to 5.5V
Efficiency: Up to 96%
Output Current: Up to 6A
Protection Features: Over-temperature and under-voltage lockout protection.
Start-up: Automatic track sequencing feature.
Package: Compact, surface-mount
Compliance: RoHS-compliant
