MAXM17504ALJ+

Part No MAXM17504ALJ+
Manufacturer Maxim Integrated
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.9-12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 48 Weeks
Features Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 12V - - - 3.5A 4.5V - 60V Input
Manufacturer Maxim Integrated
Series Himalaya
Package Tray
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 29-SMD Module, Exposed Pad
Family Name MAXM17504
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number MAXM15704ALJ+-ND, MAXM17504ALI+, MAXM17504ALI+-ND
Quantity per package 60
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 882707-MAXM17504ALJ+
Ultra Librarian 3D Model Ultra Librarian MAXM17504ALJ+ CAD Model

Description

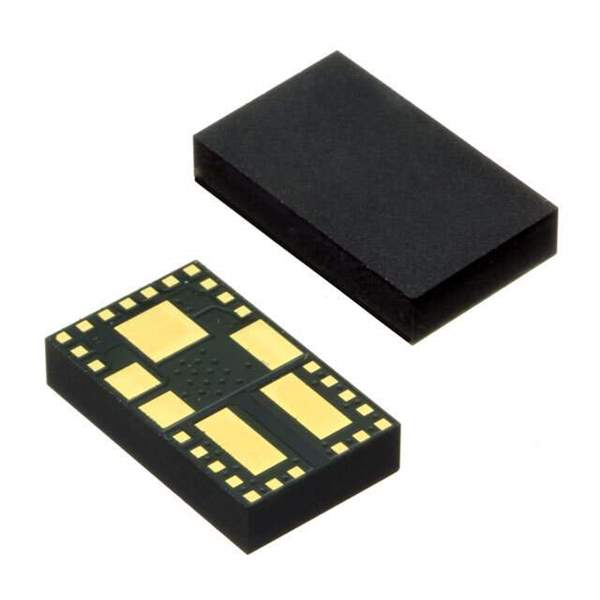

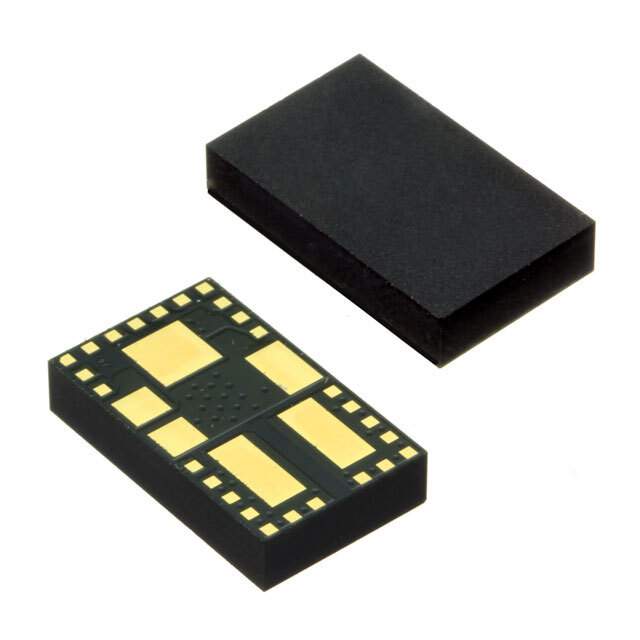

Maxim Integrated's MAXM17504ALJ+ High-Efficiency, DC-DC Power Module

The MAXM17504ALJ+ is a state-of-the-art, integrated DC-DC power module by Maxim Integrated, designed to deliver high efficiency and reliability for a wide range of applications. This compact, easy-to-use module simplifies the process of implementing a power supply solution, reducing design time and accelerating time-to-market for engineers and designers.

Key Features

  • Integrated Solution: The MAXM17504ALJ+ combines a controller, MOSFETs, an inductor, and compensation components in a single package, providing an all-in-one power solution that minimizes external component count.
  • Wide Input Voltage Range: It operates over a broad input voltage range of 4.5V to 60V, making it suitable for various industrial, automotive, and communication applications.
  • Adjustable Output Voltage: The output voltage is adjustable from 0.9V up to 12V, allowing for versatile use in different circuit configurations.
  • High Efficiency: With its high-efficiency design, the module can deliver up to 3.5A of output current while maintaining a low power dissipation, ensuring thermal performance and longevity.
  • Compact Size: The module's compact footprint (LGA-System-in-Package (SiP) measuring 10mm x 10mm x 4.32mm) is ideal for space-constrained applications.
  • Protection Features: It includes built-in over-temperature, over-current, and under-voltage lockout protections, enhancing the safety and durability of the end product.

Applications

The versatility of the MAXM17504ALJ+ makes it an excellent choice for a variety of applications, including:

  • Point-of-Load power supplies
  • Industrial control and automation systems
  • Automotive infotainment and telematics
  • Telecommunications equipment
  • Powering FPGAs, DSPs, and microprocessors

Design Support

Maxim Integrated provides comprehensive design support for the MAXM17504ALJ+, including evaluation kits, detailed datasheets, design tools, and technical assistance, ensuring that integrating this module into your design is as smooth and efficient as possible.

With its robust feature set, the MAXM17504ALJ+ stands out as a superior choice for designers seeking a high-performance, ready-to-use power module that can meet the demands of modern electronic systems.
