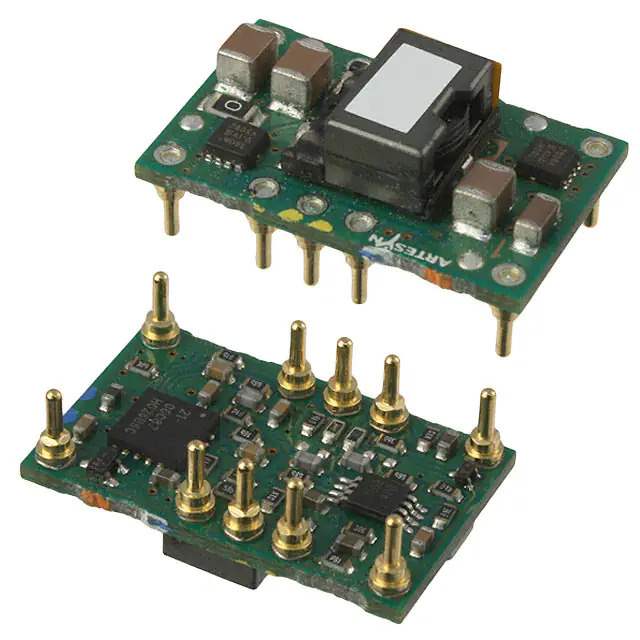

The PTH12060WAD is a high-performance, non-isolated module power converter from Texas Instruments. This power module is part of the PTH12060 series, renowned for their exceptional efficiency and thermal performance. The PTH12060WAD is designed to meet the rigorous demands of today's advanced electronic applications, offering a compact power solution with a wide input voltage range.

Key Features

• Wide Input Range: This module operates over an input voltage range of 10.8V to 13.2V, making it versatile for various applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.9V to 5.5V, allowing for a high degree of flexibility to power different circuit components.
• High Efficiency: The PTH12060WAD boasts a high efficiency of up to 95%, minimizing power loss and heat generation.
• Power Density: With its compact size and high power density, this module is ideal for space-constrained applications.
• Thermal Performance: The module's excellent thermal performance ensures reliability under varying load and temperature conditions.
• Output Current: It can deliver up to 6A of output current, catering to applications requiring a substantial power supply.
• Protection Features: It includes over-temperature protection, under-voltage lockout, and over-current protection, enhancing the safety and durability of the module.
• Easy Integration: The PTH12060WAD comes in a through-hole package, making it easy to integrate into a variety of circuit boards.

Applications

The PTH12060WAD is suitable for a broad range of applications, including but not limited to:

• Telecommunications equipment
• Data acquisition systems
• Industrial controls
• Networking equipment

With its robust design and flexible operation, the PTH12060WAD from Texas Instruments is an excellent choice for designers seeking a reliable, high-performance power conversion solution.
