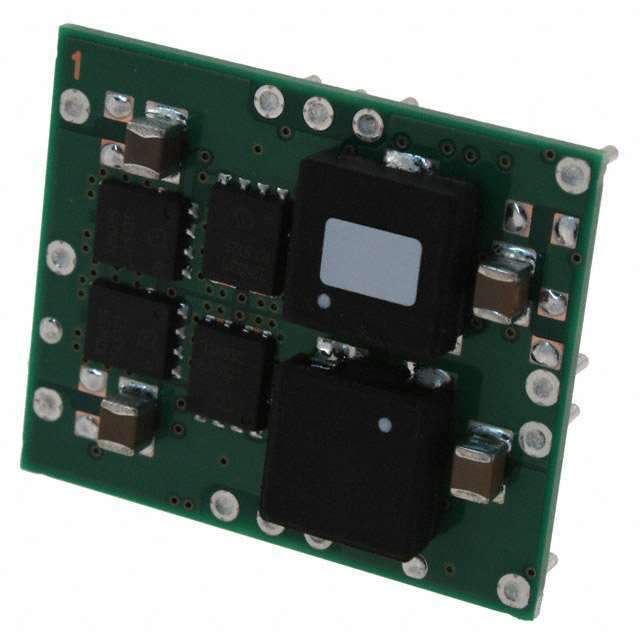

PTH12030WAD

Name: PTH12030WAD
Brand: Texas Instruments
SKU: 283871
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH12030WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 12VIN 26A ADJ 13-DIP
Datasheet	PTH12030WAD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12030
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.2V
Voltage - Input (Max)	13.8V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	26A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	13-DIP Module
Size / Dimension	1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94.5%
Power (Watts) - Max	143W
Win Source Part Number	026956-PTH12030WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH12030WAD CAD Model

Alternative Products

Description

The PTH12030WAD is a high-performance, non-isolated power module from Texas Instruments, a leading global semiconductor company.

Rating: 12A
Input Voltage Range: 8V to 14V
Output Voltage: Adjustable from 0.8V to 1.8V
Feature: Auto-Track sequencing
Efficiency: Up to 96%
Protection features: Over-current and over-temperature protection
Size: 1.3” x 0.53” x 0.32”
