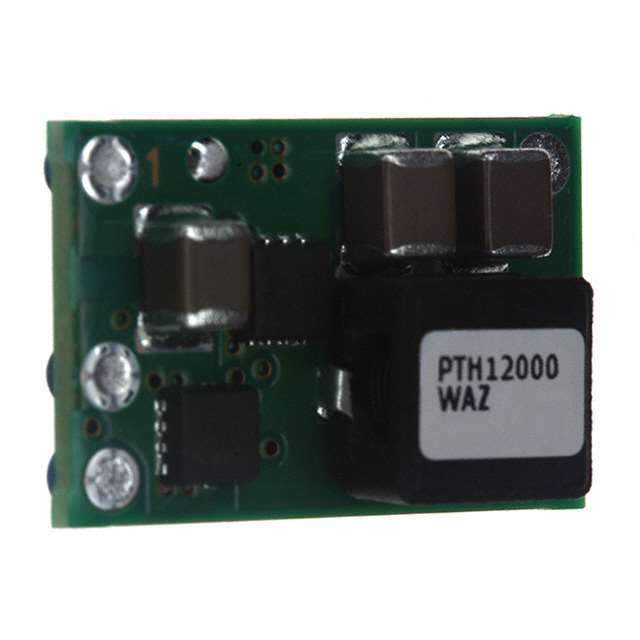

Same model may have multiple batches, images only for reference.

PTH12000WAZT

Name: PTH12000WAZT
Brand: Texas Instruments
SKU: 283863
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH12000WAZT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 12VIN 6A ADJ SMD
Datasheet	PTH12000WAZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12000
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Features	OCP, UVLO
Mounting Style	SMD/SMT
Package	5-SMD Module
Size / Dimension	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	33W
Win Source Part Number	210343-PTH12000WAZT
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH12000WAZT CAD Model

Alternative Products

Description

The PTH12000WAZT is a cutting-edge, high-performance, non-isolated power module brought to you by Texas Instruments, a company known for its innovative and reliable technology solutions.

Output Voltage: 0.8V to 5.5V (adjustable)
Input Voltage Range: 10.2V to 14V
Output Current: Up to 12A
Efficiency: Up to 96%
Feature: TurboTrans technology
Features: Auto-Track sequencing and pre-bias start-up
Operating Temperature Range: -40°C to +85°C
