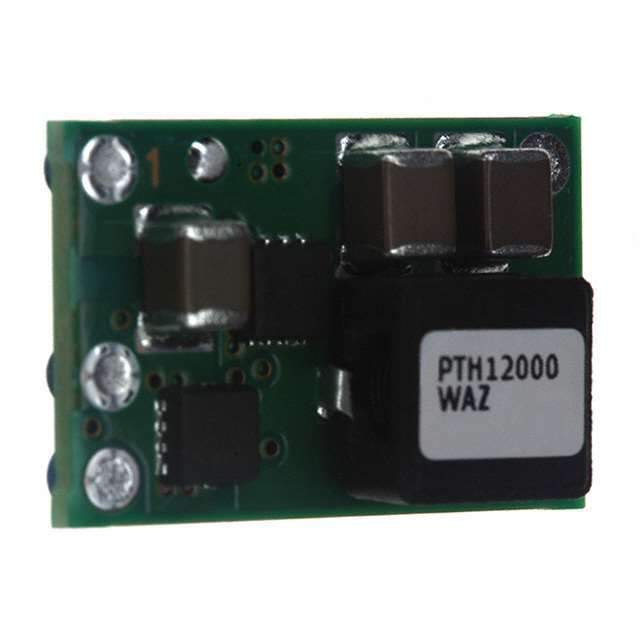

The PTH12000WAZ is a high-performance, non-isolated module power converter from Texas Instruments. This state-of-the-art power module is a member of the PTH family of products, designed to meet the demanding needs of today's high-powered electronics. With its wide input voltage range and adjustable output voltage, the PTH12000WAZ offers flexibility and reliability for a variety of applications.

Key Features

• Wide Input Voltage Range: The PTH12000WAZ operates over an input voltage range of 10.8V to 13.2V, making it suitable for a variety of input sources.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.9V to 5.5V to meet the requirements of different applications.
• High Efficiency: This module features a high efficiency of up to 95%, minimizing energy loss and heat generation.
• Output Current: It can deliver up to 12A of continuous output current, providing ample power for even the most demanding loads.
• Thermal Performance: Excellent thermal performance is achieved through the use of an integrated heat sink, ensuring reliable operation under various conditions.
• Power Good Signal: The inclusion of a 'power good' signal allows for easy monitoring of the power system status.
• Under-Voltage Lockout: The under-voltage lockout feature ensures that the converter operates only when the input voltage is within its specified range.

Applications

The versatility of the PTH12000WAZ makes it an ideal choice for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Computing and data storage systems
• Industrial controls
• Networking hardware

Quality and Reliability

As with all Texas Instruments products, the PTH12000WAZ is manufactured to the highest quality standards, ensuring reliability and performance in the field. The module is also RoHS compliant, adhering to environmental standards for hazardous substances.
