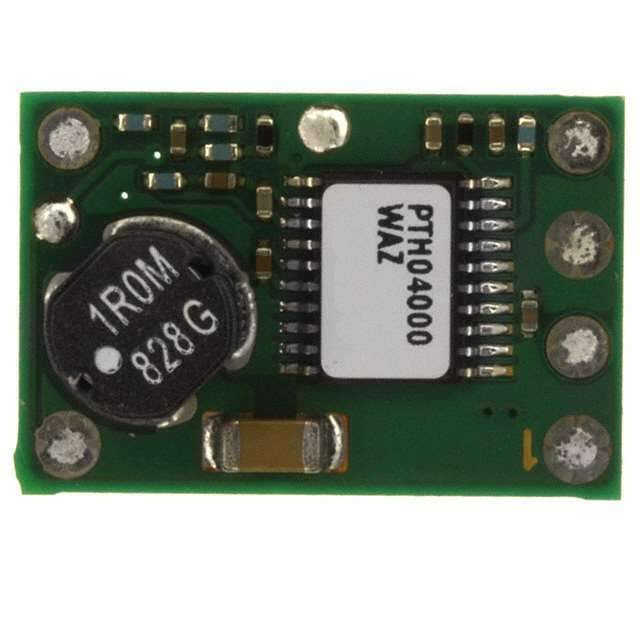

PTH04000WAZ

Name: PTH04000WAZ
Brand: Texas Instruments
SKU: 283799
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH04000WAZ
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .9-3.6V 3A SMD
Datasheet	PTH04000WAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH04000W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.9 ~ 3.6 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	10.8W
Win Source Part Number	145297-PTH04000WAZ
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH04000WAZ CAD Model

Alternative Products

Description

The PTH04000WAZ is a highly sophisticated, low-profile power module from the reputable brand, Texas Instruments.

Input Voltage Range: 2.95V to 5.5V
Output Current: Up to 3A
Adjustable Output Voltage: 0.9V to 3.6V
On/Off Inhibit Control: Yes
Output Voltage Adjustment: Yes
Under-Voltage Lockout: Yes
Over-Temperature Protection: Yes
High Efficiency: Up to 96%
Auto-Track Sequencing: Yes
