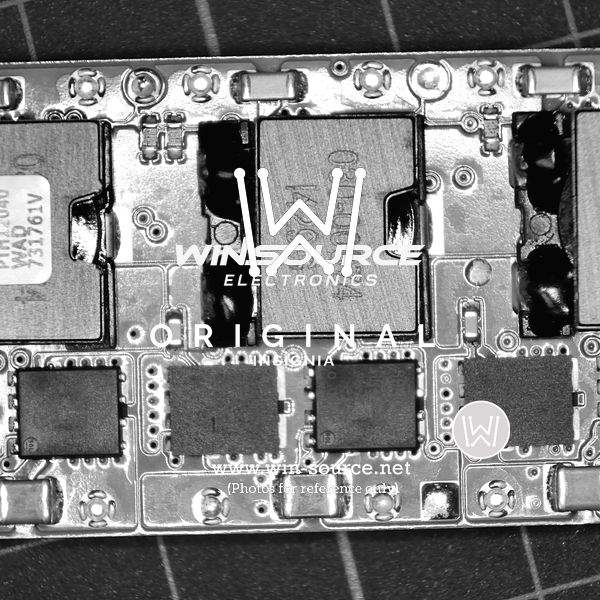

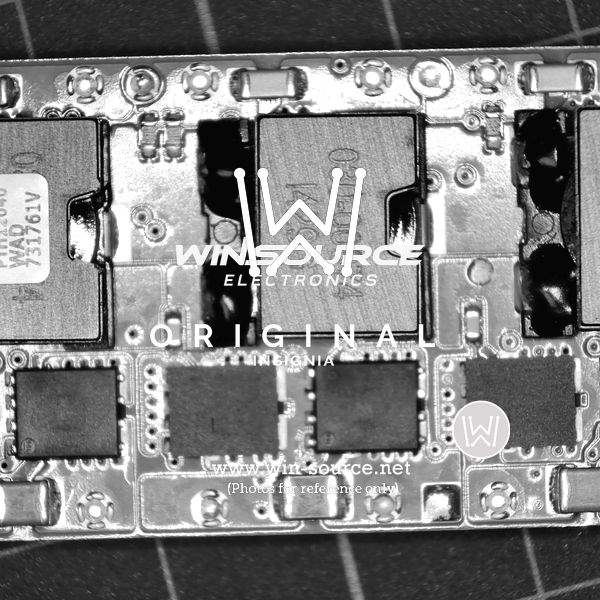

The PTH12040WAD is a high-performance, non-isolated module power converter from Texas Instruments. This advanced power solution is designed to meet the rigorous demands of high-powered applications that require a wide input voltage range and a flexible output voltage. The PTH12040WAD is a testament to Texas Instruments' commitment to providing innovative power management solutions.

Key Features:

• Wide Input Voltage Range: The PTH12040WAD operates with an input voltage range of 4.5V to 14V, accommodating various power sources and ensuring versatility across different system architectures.
• Adjustable Output Voltage: This module offers an output voltage that is adjustable from 0.8V to 3.6V, allowing for high flexibility and precision to meet the specific needs of the application it serves.
• High Efficiency: With an efficiency of up to 95%, the PTH12040WAD ensures minimal power loss and is ideal for applications where energy conservation is critical.
• Output Current: It delivers up to 6A of output current, making it suitable for high-performance applications that require substantial power delivery.
• Thermal Performance: The module is designed with excellent thermal performance in mind, featuring an integrated heat sink that provides effective cooling.
• Easy Integration: The PTH12040WAD comes in a compact, through-hole package that simplifies the integration process into existing designs.

Applications:

The versatility and robustness of the PTH12040WAD make it ideal for a wide range of applications, including:

• Telecommunications equipment
• Networking infrastructure
• Industrial systems
• Computing platforms
• High-density distributed power systems

Reliability and Support:

Texas Instruments is known for its commitment to quality and reliability. The PTH12040WAD is no exception and is backed by comprehensive technical support and documentation. Engineers and designers can rely on Texas Instruments' extensive support network for their design-in processes.

Summary:

In summary, the PTH12040WAD from Texas Instruments is a powerful, efficient, and flexible module power converter that is well-suited for a variety of demanding applications. Its wide input voltage range, adjustable output voltage, high efficiency, and substantial output current capability make it an excellent choice for designers looking to optimize their power management solutions.
