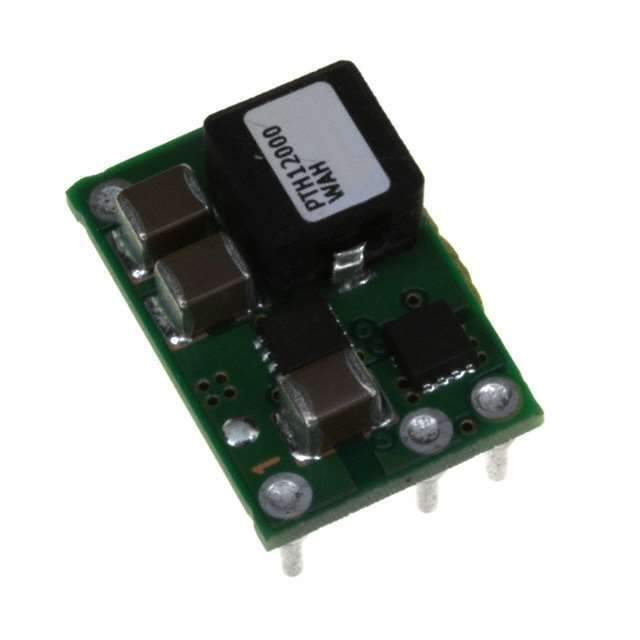

PTH12000WAH

Name: PTH12000WAH
Brand: Texas Instruments
SKU: 283862
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH12000WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 1.2-5.5V 6A HORZ T/H
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	56
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH12000
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	5-DIP Module
Size / Dimension	0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	33W
Catalog	PTH12000 Series
Win Source Part Number	085674-PTH12000WAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Power Management
Ultra Librarian 3D Model	Ultra Librarian PTH12000WAH CAD Model

Alternative Products

Description

The PTH12000WAH is a high-performance, low-output voltage, non-isolated power module from Texas Instruments, a renowned global semiconductor design and manufacturing company.

Output Current: Up to 12A
Nominal Output Voltage: 1.2V
Input Voltage Range: 4.5V to 14V
Adjustable Output Voltage: 0.8V to 1.8V
High Efficiency: Up to 96% @ half load
Protective features: Over-temperature protection, output over-current protection, and input under-voltage lockout
