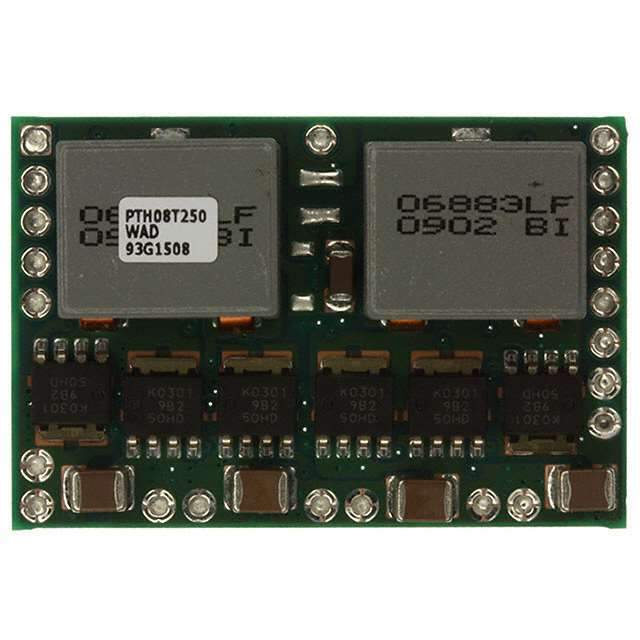

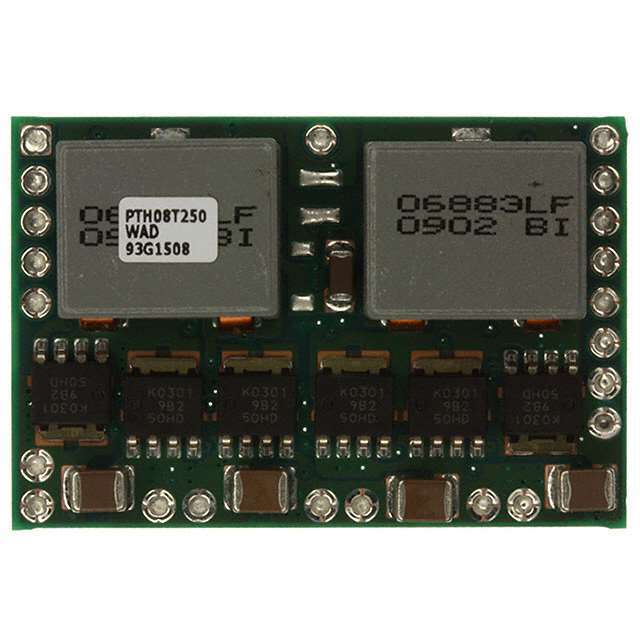

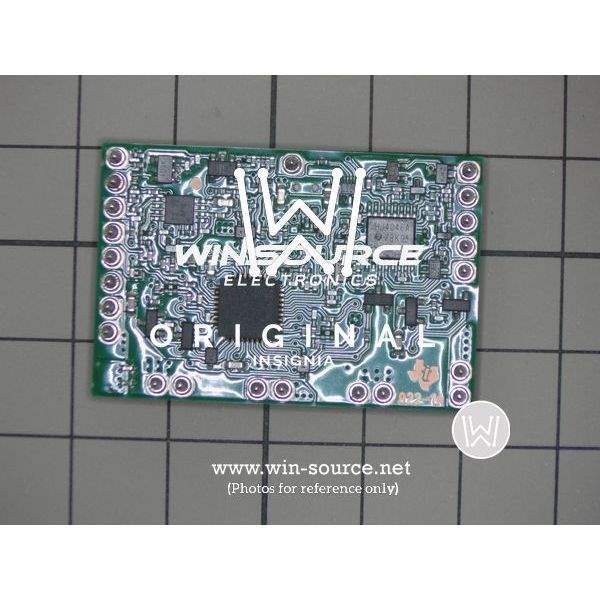

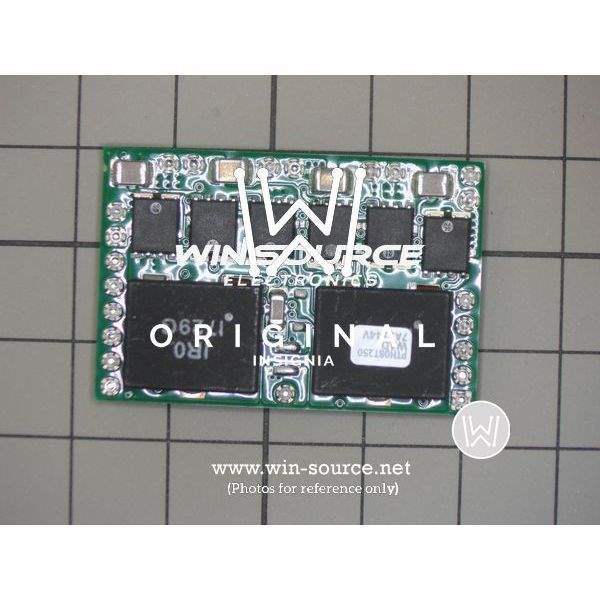

Same model may have multiple batches, images only for reference.

PTH08T250WAD

Name: PTH08T250WAD
Brand: Texas Instruments
SKU: 283855
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH08T250WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 50A .7-3.6V HORZ T/H
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	25
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH08T250W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.7 ~ 3.6 V
Current - Output (Max)	50A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	22-DIP Module
Size / Dimension	1.52" L x 1.02" W x 0.38" H (38.6mm x 25.9mm x 9.7mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	180W
Catalog	PTH08T250W Series
Win Source Part Number	082097-PTH08T250WAD
Family Name	PTH08T250W
Introduction Date	May 21, 2012
ECCN	EAR99
Country of Origin	Mexico
Halogen Free	Not Compliant
Estimated EOL Date	2028
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08T250WAD CAD Model

Alternative Products

Description

The Texas Instruments PTH08T250WAD is a high-performance, non-isolated power module that offers a range of advanced features.

Technology: TurboTrans (patented)
Input Voltage Range: 4.5V to 14V
Adjustable Output Voltage: 0.69V to 3.6V
Power Density: Up to 60A output current in a compact, low-profile package
Auto-Track Sequencing: Yes
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
Output Over-Current Protection: Yes
RoHS Compliant: Yes
