Same model may have multiple batches, images only for reference.

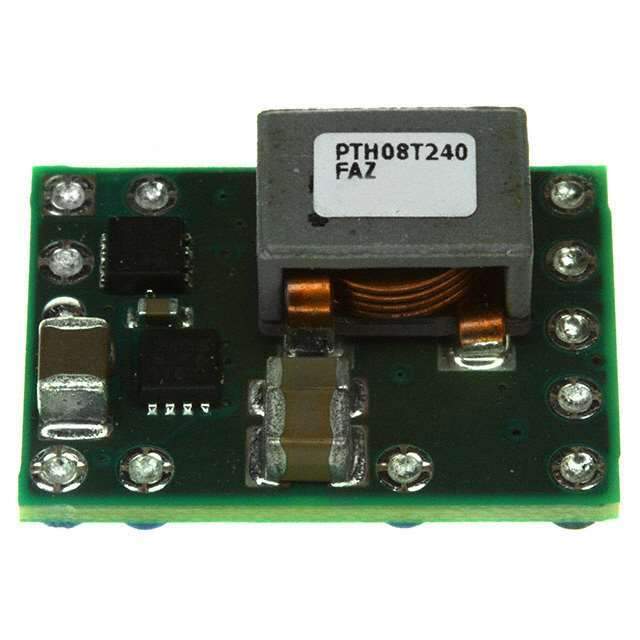

PTH08T240FAZ Real Image
Same model may have multiple batches, images only for reference.

PTH08T240FAZ

Part No PTH08T240FAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 14VIN 10A ADJ 11SMD
Datasheet
PTH08T240FAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH08T240F
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.69 ~ 2 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 11-SMD Module
Size / Dimension 0.87" L x 0.62" W x 0.36" H (22.1mm x 15.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 90%
Power (Watts) - Max 20W
Win Source Part Number 145300-PTH08T240FAZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH08T240FAZ CAD Model

Description

The PTH08T240FAZ from Texas Instruments is a high-performance, non-isolated power module designed for a wide range of applications.

  • Power: 50W
  • Input Voltage Range: 4.5V to 14V
  • Output Voltage Range: 0.69V to 5.5V
  • Auto-Track Sequencing: Yes
  • Pre-Bias Operation: Yes
  • Adjustable Undervoltage Lockout: Yes
  • Over-Temperature Protection: Yes
  • Efficiency: Up to 96%
  • Size: 9.6mm x 10.4mm x 4.6mm
  • Package: Through-hole
  • Operating Temperature Range: -40°C to 85°C
